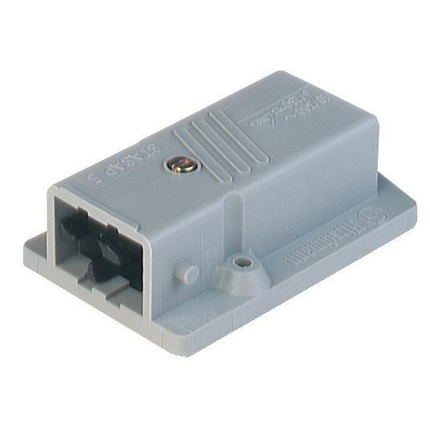

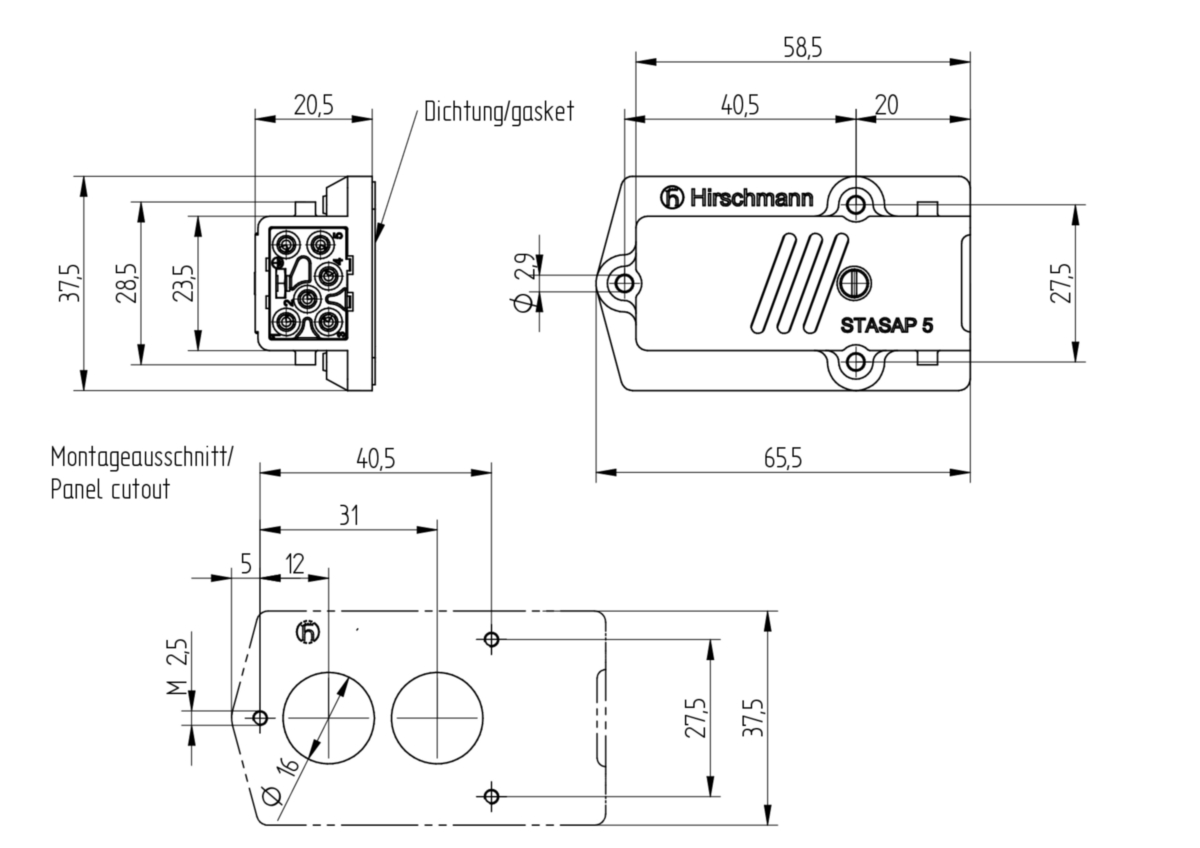

STASAP 5 V0 - Rectangular Receptacle Power Connector (ST Series): Male, panel mount, 5-pin+PE, grey housing, 400 V AC / 230 V DC, 10 A AC/6 A DC




Rectangular Receptacle Power Connector (ST Series): Male, panel mount, 5-pin+PE, grey housing, 400 V AC / 230 V DC, 10 A AC/6 A DC

Technical Data

Product Family: Power Connector
Product Sub Family: ST-Series
Brand: Hirschmann
Connector Type: Receptacle
Type of Contact / Gender: male
Connector Design: Panel Mount with flange
Number of Pins: 5+PE
Shielding: Unshielded
Attachment Type: safety bracket
Rated Voltage: 400 V AC / 250 V DC
Rated Impulse Voltage: 2.5 kV
Operating Voltage: 400 V AC / 230 V DC
Rated Current: 10 A AC / 6 A DC
Contact Resistance: ≤ 10 mOhm
Mating Cycles: max. 50
Type of Connection: crimp
Conductor Cross Section: 0.25 mm² to 1.00 mm²
Ambient Temperature (Operation): -30°C to +90°C, notice Derating
Protection Degree / IP Rating: IP54
Design Standard: DIN EN 61984 (VDE 0627), IEC 60335
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance: DIN EN 60664-1 (2008/01); VDE 0110-1

Materials

Contact Base Material: CuZn
Contact Plating: Cu/Ag
Contact Bearer Material: PA 66 GF
Contact Bearer Color: black
Flammability Class (Contact Bearer): UL 94 V-0; GWFI 850°C; GWIT 775°C
Housing Material: PA 66 GF
Housing Color: grey
Flammability Class (Housing): UL 94 V-0; GWFI 850°C; GWIT 775°C
Gasket Material: NBR

Additional Technical Data

Fastening torque (mounting screw): M 2.5: (40-50) Ncm, flange
Fastening Torque (Attachment): BZ 2.9x14: (40-50) Ncm
Mounting: Screw: M 2.5 (3x)
Accessories to Order Separately: STASI 3, 732-045-…, safety bracket

Approvals

VDE: VDE 61984
SEV: SEV

Notes

Protection Degree / IP Rating Note: * only if mounted and locked in combination with Hirschmann / Lumberg connector.
Note Derating: * Notice derating
Note: Do not connect or disconnect under load.
Particularities: * flame retardant of the plastic materials according to DIN EN 60335-1: GWFI 850 °C; GWIT 775 °C
