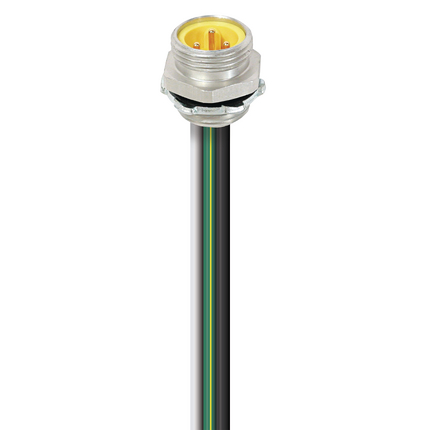

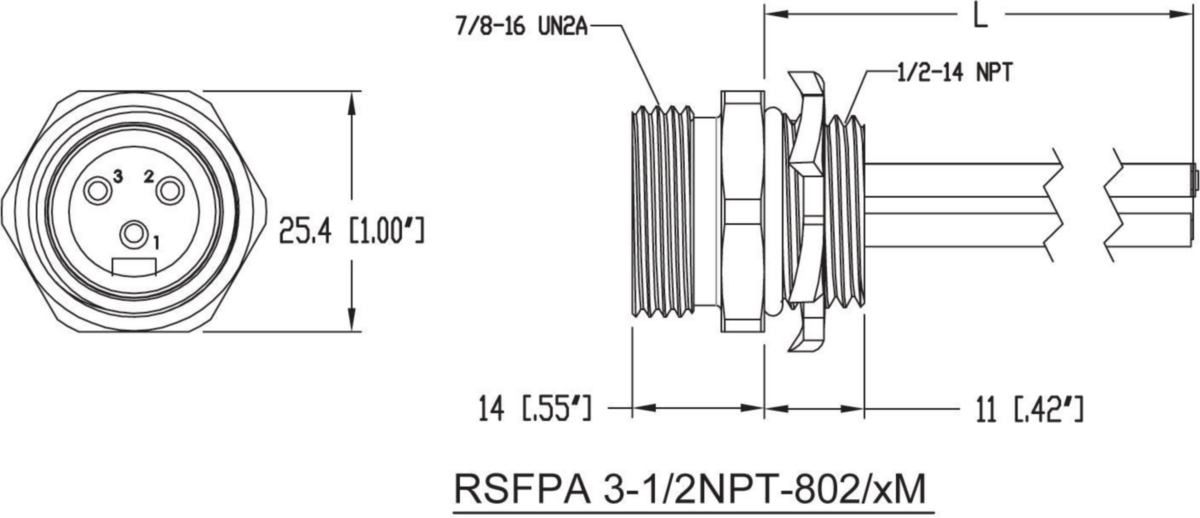

RSFPA 3-1/2NPT-802 - Mini Power Receptacle Connector: 7/8", male, front mount, 3-pin(2+PE), silver housing, 600 V, 18 A, 14 AWG




Mini Power Receptacle Connector: 7/8", male, front mount, 3-pin(2+PE), silver housing, 600 V, 18 A, 14 AWG

Data Sheet
Share

Technical Data

Product Family: Power Connector
Product Sub Family: Mini Power 7/8"
Brand: Lumberg Automation
Connector Type: Receptacle
Type of Contact / Gender: male
Connector Design: straight

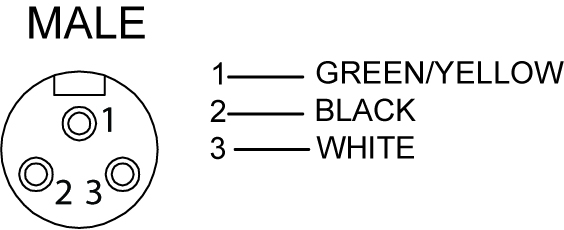

Number of Pins: 3(2+PE)
Shielding: Unshielded
Rated Voltage (UL): 600 V
Rated Current (UL)*: 18 A
Mating Cycles: ≤ 100
Ambient Temperature (Operation)*: -40°C to +90°C
Protection Degree / IP Rating**: IP65, IP67

Materials

Contact Base Material: Cu Alloy
Contact Plating: Au
Contact Bearer Material: PVC
Contact Bearer Color: black
Housing Material: Brass
Housing Plating: Ni
Housing Color: Silver

Cable Data

Conductor Size: 14 AWG
Number of Wires: 3
Conductor material: Cu
Wire Insulation Material: PVC
Insulated Wire Diameter: ø 0.132 in
Ambient Temperature (Fixed Installation): -40 °C to +90 °C

Approvals

UL-File: UL: E482233
UL: UL 2237
CSA: C-UL LISTED: E482233

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Protection Degree / IP Rating Note: ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Variants
Item #Item DescriptionCable Length
511000778RSFPA 3-1/2NPT-802/0.5M0.5 m
511000779RSFPA 3-1/2NPT-802/1M1 m
511000780RSFPA 3-1/2NPT-802/3M3 m
