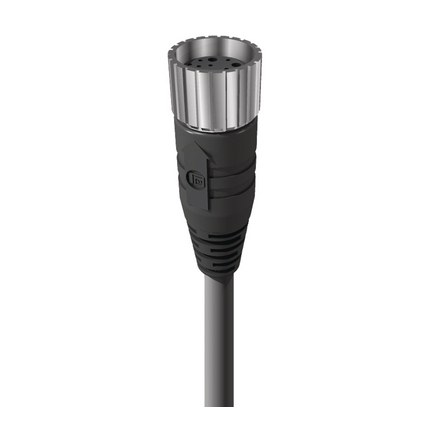

RKU 19-355 - M23 Power Single-Ended Cordset: Female, straight, 19-pin, black body, 120 V AC/DC, 16x8 A + 3x10 A; PUR grey cable, 16x0.5 mm² + 3x1.0 mm²




M23 Power Single-Ended Cordset: Female, straight, 19-pin, black body, 120 V AC/DC, 16x8 A + 3x10 A; PUR grey cable, 16x0.5 mm² + 3x1.0 mm²

Technical Data

Product Family: Power Connector
Product Sub Family: M23 Power
Brand: Lumberg Automation
Connector Type: Cordset, single ended
Type of Contact / Gender: female
Connector Design: straight
Number of Pins: 19
Shielding: Unshielded
Attachment Type: Coupling Nut
Rated Voltage: 125 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 120 V AC/DC
Rated Current: 16 x 8 A (pin-Ø 1 mm), 3 x 10 A (contact-Ø 1.5 mm)
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation): -25°C to +80°C
Protection Degree / IP Rating: IP67
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance: acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category: II acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material: 16 x CuSn/3 x CuZn
Contact Plating: Cu/Au
Contact Bearer Material: PA 66
Contact Bearer Color: black
Flammability Class (Contact Bearer): UL 94-HB
Molded Body Material: TPU
Molded Body Color: black
Flammability Class (Molded Body): UL 94-HB
Attachment Material: CuZn, nickel-plated
O-Ring Material: FKM

Cable Data

Cable Number: 355
Number of Wires: 19
Minimal Bending Radius (Fixed Inst): ˃ 5 x D
Minimal Bending Radius (Flexible Inst): ˃ 10 x D
Cycles (Bending): ˃ 5 M
Conductor material: Cu
Cable Jacket Material: PUR
Cable Jacket Color: grey
Cable Diameter D: Ø 11.60 ±0.30 mm
Wire Insulation Material: TPE-S
Insulated Wire Diameter: 16x Ø1.60 mm + 3x Ø2.0 mm
Ambient Temperature (Fixed Installation): -50°C to +80°C
Ambient Temperature (Flex Installation): -25°C to +80°C
UL Cable Type: AWM: 20549
Flammability Class (Cable Jacket): IEC 60332-2 , VDE 0482-265-2-2 , EN 50265-2-2, CSA-FT2; non fire propagating and self-extinguishing

Safety & Environmental Compliance

RoHS Compliant: yes

Resistances

Halogenfree: DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1

Notes

Protection Degree / IP Rating Note: * only if mounted and locked in combination with Hirschmann / Lumberg connector.
Note Derating: * Notice derating
Note: Do not connect / disconnect under load.
Particularities: When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.
Variants
Item #Item DescriptionCable Length
98012RKU 19-355/4 M4 m
89236RKU 19-355/5 M5 m
94603RKU 19-355/6 M6 m
94604RKU 19-355/8 M8 m
81112RKU 19-355/10 M10 m
101316RKU 19-355/12 M12 m
93118RKU 19-355/15 M15 m
16288RKU 19-355/20 M20 m
