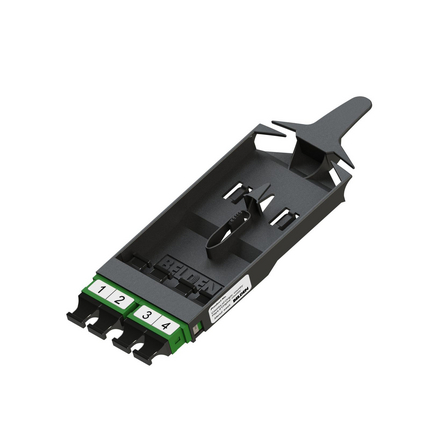

FFSD04MP - FX DCX FRAME, OS2, 04 PORTS, MPO KEY UP/KEY DOWN


FX DCX FRAME, OS2, 04 PORTS, MPO KEY UP/KEY DOWN, GREEN ADAPTERS

Product Overview

Environmental Space: Indoor
Suitable Applications: Optical Distribution Frame, Data Centers, Central Equipment Room

Construction

Fiber Cable Construction
Fiber Type
OS2
Weight: 0.066 lbs
Height: 0.448 in
Width: 2.260 in
Depth: 5.7 in

Temperature Range

Operating Temp Range: -10 to 60°C
Storage Temp Range: -10 to 75°C

Product Material

Materials
DescriptionMaterialColor
FramePlastic - UL94V-0Black
Front Connector BodyPlastic - UL94V-0Green

Standards

EU RoHS Compliance Date (yyyy-mm-dd): 2013-01-11
MII Order #39 (China RoHS): EUP 50

Part Number

Related Parts: DCX Frame Module & Patch Pannel
Variants
Item #ColorConnector TypePort CountFiber Type
FFSD04MPGreenMPO Male4 PortOS2

Product Notes

Packaging: Individually packaged in a plastic shell, Shipped in cardboard box

History

Update and Revision: Revision Number: 0.19 Revision Date: 09-25-2020
Date: 2013-01-11
No accessories are available for this product
