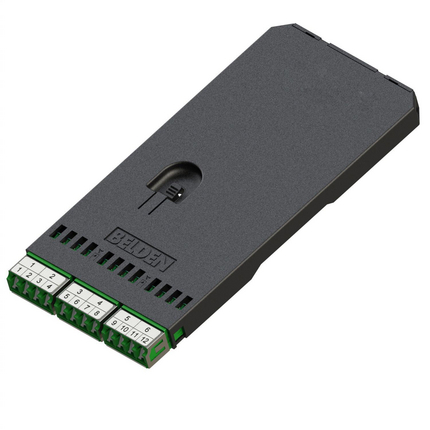

FCSD06LAFP - FX DCX Splice Cassette, OM3, 6 Ports

FX DCX Splice Cassette OS2/APC 6 Ports LC Duplex with 250um Pigtails

Product Overview

Environmental Space: Indoor
Suitable Applications: Optical Distribution Frame, Data Centers, Central Equipment Room


Fiber Cable Construction
Fiber Type
Weight: 0.137 lbs
Height: 0.448 in
Width: 3.39 in
Length: 6.89 in

Mechanical Characteristics

Front Connection: Static

Temperature Range

Operating Temp Range: -10 to 60°C
Storage Temp Range: -10 to 75°C

Product Material

Zirconia-CeramicAdapter Sleve Material
Plastic - UL94V-0Front Connector BodyGreen
Plastic - UL94V-0Cassette AssemblyBlack


EU RoHS Compliance Date (yyyy-mm-dd): 2013-01-11

Part Number

Included Parts: 250µm color coded pigtails, splice chip. splice protectors, cable retention rubber: 2mm & 3mm
Related Parts: DCX Frame Module & Patch Pannel
Item #ColorConnector Type
FCSD06LAFPGreenLC Duplex

Product Notes

Packaging: Individually packaged in a plastic shell, Shipped in cardboard box


Update and Revision: Revision Number: 0.61 Revision Date: 12-09-2020
Date: 2013-01-11
