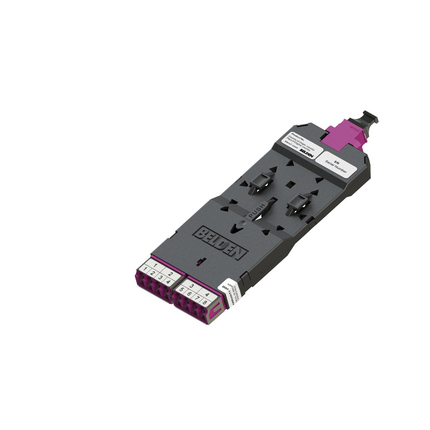

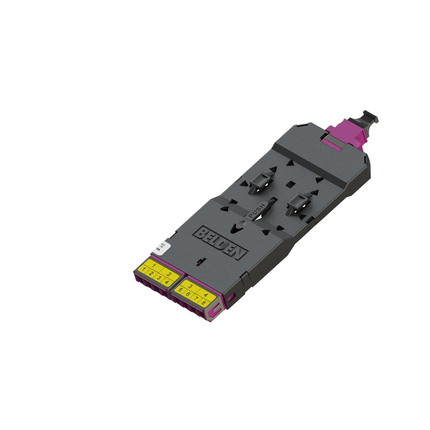

(109)FX DCX Cassette, OM4, 04 Ports LC Duplex to MPO-12 (Female) Base 8, Erika Violet Adapters
| Environmental Space: | Indoor |
| Suitable Applications: | Optical Distribution Frame, Data Centers, Central Equipment Room |
| Fiber Type |
|---|
| OM4 |
| Weight: | 0.092 lbs |
| Height: | 0.448 in |
| Width: | 2.260 in |
| Length: | 4.795 in |
| Front Connection: | Static |
| Operating Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -10 to 75°C |
| Element | Description | Material | Color |
|---|---|---|---|
| Zirconia-Ceramic | Adapter Sleve Material | Zirconia-Ceramic | |
| Plastic - UL94V-0 | Front Connector Body | Plastic - UL94V-0 | Erika Violet |
| Plastic - UL94V-0 | Cassette Assembly | Plastic - UL94V-0 | Black |
| Polarity Identification: | SR4 |
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Patch Side | LC Duplex | 0.15 dB | 30 dB |
| Trunk Side | MPO12(F)/8F | 0.2 dB | 30 dB |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | DCX Frame Module & Patch Pannel |
| Item # | Color | Connector Type | Polarity Identification |
|---|---|---|---|
| FC4D04LD4F | Erika Violet | LC Duplex | SR4 |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box |
| Update and Revision: | Revision Number: 0.62 Revision Date: 12-01-2022 |
