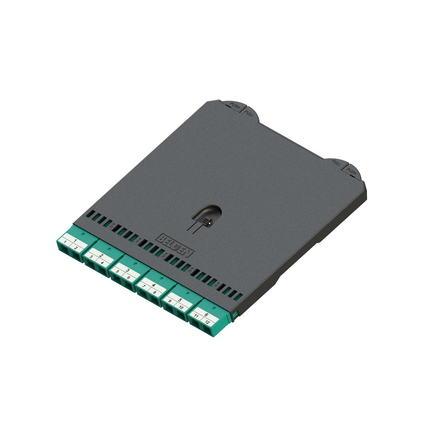

(109)FX DCX Splice Cassette, OM3, 06 Ports SC Duplex with 250µm Pigtail Ribbon, Aqua Adapters
| Suitable Applications: | DCX, Data Centers, Central Equipment Room |
| Weight: | 0.460 lbs |
| Height: | 0.500 in |
| Width: | 6.830 in |
| Depth: | 7.430 in |
| Max Capacity: | 12 Fibers |
| Operating Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -10°C to +75°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Cassette Assembly | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Aqua | SC Duplex |
| Adapter Sleeve | Zirconia-Ceramic |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | 250µm mass fusion pigtails, splice chip, splice protectors |
| Related Parts: | DCX Frames, Modules, and Patch Panels |
| Item # | Connector Type |
|---|---|
| FC3D06SDFM | SC Duplex |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box |
| Update and Revision: | Revision Number: 0.29 Revision Date: 12-12-2022 |
