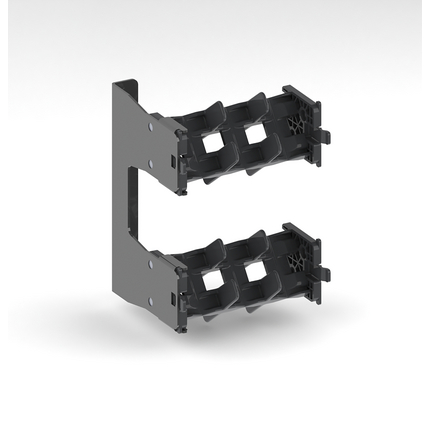

(4)DCX Cable Distribution Attachment Kit (1 Bracket w/ (2) Plastic Holders, up to 24 LPM Transitions per Holder), Black
| Environmental Space: | Indoor |
| Suitable Applications: | Optical Distribution Frame, Data Centers, Central Equipment Room |
| Weight: | 1.150 lbs |
| Height: | 5.270 in |
| Width: | 3.370 in |
| Length: | 3.930 in |
| Max Capacity: | 48 LPM Transitions |
| Operating Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -10°C to +75°C |
| Description | Material | Color |
|---|---|---|
| Cable Distribution Manager | PC/ABS | Black |
| Cable Distribution Bracket | Steel | Black |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Hardware kit: #10-32 screw for metal (2x), Quick Start Guide document |
| Related Parts: | DCX Frame Module & Patch Panel |
| Item # | Length |
|---|---|
| DCX-CABV-KIT01B | 3.930 in |
| Packaging: | Each item is packaged in a cardboard box |
| Notes: | For more information, refer to Quick Start Guide PX106858 (English) or visit our web site at http://www.belden.com/dcx |
| Update and Revision: | Revision Number: 0.35 Revision Date: 12-12-2022 |
