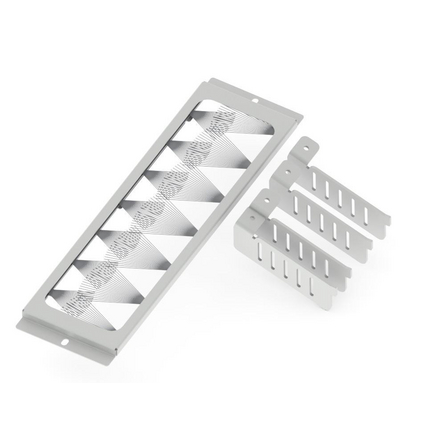

(4)DCX Cable Attachment Bracket - Bottom (4 Brackets for 24 Cables), Central Office White
| Environmental Space: | Indoor |
| Suitable Applications: | Optical Distribution Frame, Data Centers, Central Equipment Room |
| Weight: | 0.200 lbs |
| Height: | 1.500 in |
| Width: | 1.060 in |
| Depth: | 4.710 in |
| Max Capacity: | 24 Cables |
| Operating Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -10°C to +75°C |
| Description | Material | Color |
|---|---|---|
| Cable Entrance Bracket - Bottom | Steel | White |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Hardware kit: #10-32 self-tapping screw with external tooth washer, (1) per bracket |
| Related Parts: | DCX Frame Module & Patch Panel |
| Item # |
|---|
| DCX-BOTE-KIT02W |
| Packaging: | Packaged in a cardboard box (4 per box) |
| Notes: | For more information, visit our web site at http://www.belden.com/dcx |
| Update and Revision: | Revision Number: 0.36 Revision Date: 12-12-2022 |
