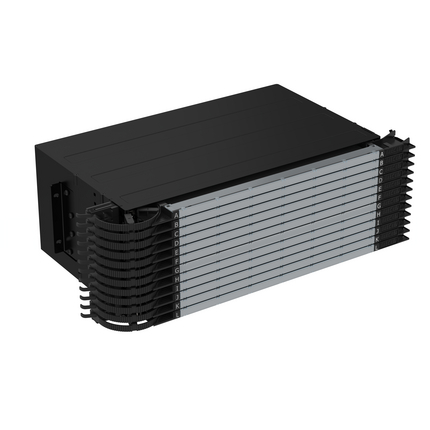

DCX-04FM-LR - DCX 4U Housing with 12 Trays, Left-to-Right Flow


DCX HOUSING 4U, LEFT-RIGHT CABLE FLOW, WITH 12 TRAYS, TRUNK & PATCH MANAGEMENT

Product Overview

Environmental Space: Indoor
Suitable Applications: Optical Distribution Frame, Data Centers, Central Equipment Room

Construction

Weight: 17.47 lbs
Height: 6.729 in
Width: 20.807 in
Depth: 11.81

Physical Specifications

Max Capacity: Holds 48 Cassettes/Frames, Base 12 or 72 Cassettes, Base-8

Mechanical Characteristics

Termination Type: Front and Left Trunk Cables Access

Temperature Range

Operating Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C

Product Material

Materials
ElementDescription
SteelHousing
PC/ABSHousing
PolycarbonateHousing

Standards

MII Order #39 (China RoHS): EUP 50

Part Number

Included Parts: #12-24 machine screw Phillips (4x). Rail cage nuts (4x)
Variants
Item #ColorUPC
DCX-04FM-LRBlack611589248204

Product Notes

Packaging: Individually packaged in a cardboard box
Notes: For more information, please refer to our web site at http://www.belden.com.

History

Update and Revision: Revision Number: 0.87 Revision Date: 05-06-2021
Date: 2013-01-11
DCX Cross-Connect Housings 2D CAD Drawing
Description: This zip folder contains the 2D CAD drawing (*.dwg file) for DCX Cross-Connect 4U Housings
PX106856-EN_QS Guide_Housing.pdf
PX106863-EN_PLANNING_OPERATIONS_Guide.pdf
PX106864-EN_System Installation Guide.pdf
DCX Cross-Connect Housings Visio Stencils
Description: This zip folder contains the Visio stencils (*.vss file) for DCX Cross-Connect 4U Housings and 0U Magnetic Trays
No accessories are available for this product
