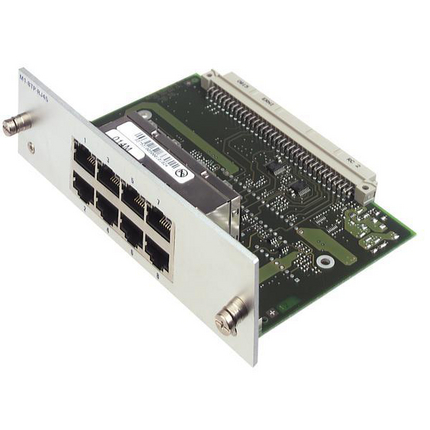

M1-8TP-RJ45 - Media module (8 x 10/100BaseTX RJ45) for MACH102


8 x 10/100BaseTX RJ45 port media module for modular, managed, Industrial Workgroup Switch MACH102

Product description

Description: 8 x 10/100BaseTX RJ45 port media module for modular, managed, Industrial Workgroup Switch MACH102
Part Number: 943 970-001

Network size - length of cable

Twisted pair (TP): 0-100 m

Power requirements

Power consumption: 2 W
Power output in BTU (IT)/h: 7

Ambient conditions

MTBF (MIL-HDBK 217F: Gb 25 ºC): 169.95 Years
Operating temperature: 0-50 °C
Storage/transport temperature: -20-+85 °C
Relative humidity (non-condensing): 10-95 %

Mechanical construction

Dimensions (WxHxD): 138 mm x 90 mm x 42mm
Weight: 210 g
Mounting: Media Module
Protection class: IP20

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD): 4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field: 10 V/m (80-2700 MHz)
EN 61000-4-4 fast transients (burst): 2 kV power line, 4 kV data line
EN 61000-4-5 surge voltage: power line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line
EN 61000-4-6 Conducted Immunity: 10 V (150 kHz-80 MHz)

EMC emitted immunity

EN 55022: EN 55022 Class A
FCC CFR47 Part 15: FCC 47CFR Part 15, Class A

Approvals

Safety of industrial control equipment: cUL 508
Safety of information technology equipment: cUL 60950-1

Scope of delivery and accessories

Scope of delivery: Media module, user manual
Variants
Item #
943970001
Update and Revision: Revision Number: 0.48 Revision Date: 04-16-2020
