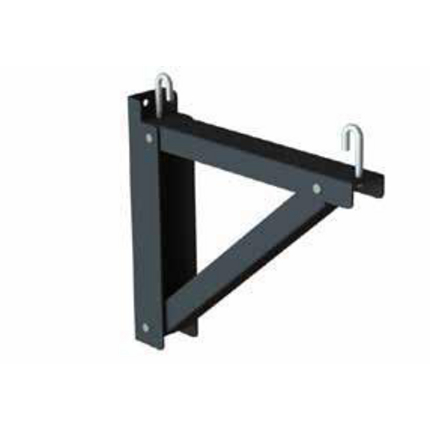

(4)Triangular Support Bracket - Steel
| Product Overview: | Provides wall support for cable runway. Made of cold-rolled steel. |
| Benefits: | Provides wall support for cable runway., Made of cold-rolled steel. |
| Environmental Space: | Indoor |
| Load Capacity: | 400 lb |
| Finish: | Black Powdercoat Finish |
| Material: | Steel |
| Color: | Black |
| Included Parts: | Kit consists of: (1) vertical wall-mounting bracket, (1) runway support channel, (1) angle support channel, (3) clevis pins (5/16" diameter) & cotter pins, (2) 5/16"-18 x 2.25" J-bolts, (2) 5/16"-18 hex nuts & split washers |
| Packaging: | Individually Boxed |
| Part # | Description | Color | Included Parts | Shipping Weight |
|---|---|---|---|---|
| BLTSB746-12B | 12" Triangular Support Bracket, Steel for use with 6" - 12"W Cable Runway | Black | Kit consists of: (1) vertical wall-mounting bracket, (1) runway support channel, (1) angle support channel, (3) clevis pins (5/16" diameter) & cotter pins, (2) 5/16"-18 x 2.25" J-bolts, (2) 5/16"-18 hex nuts & split washers | 5.0 lb |
| BLTSB746-24B | 24" Triangular Support Bracket, Steel for use with 24"W Cable Runway | Black | Kit consists of: (1) vertical wall-mounting bracket, (1) runway support channel, (1) angle support channel, (3) clevis pins (5/16" diameter) & cotter pins, (2) 5/16"-18 x 2.25" J-bolts, (2) 5/16"-18 hex nuts & split washers | 9.0 lb |
| BLTSB746-18B | 18" Triangular Support Bracket, Steel for use with 18"W Cable Runway | Black | Kit consists of: (1) vertical wall-mounting bracket, (1) runway support channel, (1) angle support channel, (3) clevis pins (5/16" diameter) & cotter pins, (2) 5/16"-18 x 2.25" J-bolts, (2) 5/16"-18 hex nuts & split washers | 8.0 lb |
| Update and Revision: | Revision Number: 0.147 Revision Date: 11-14-2022 |
