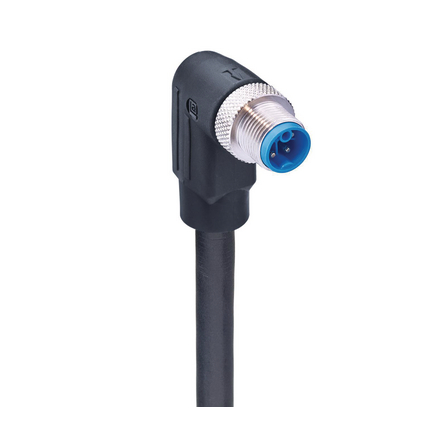

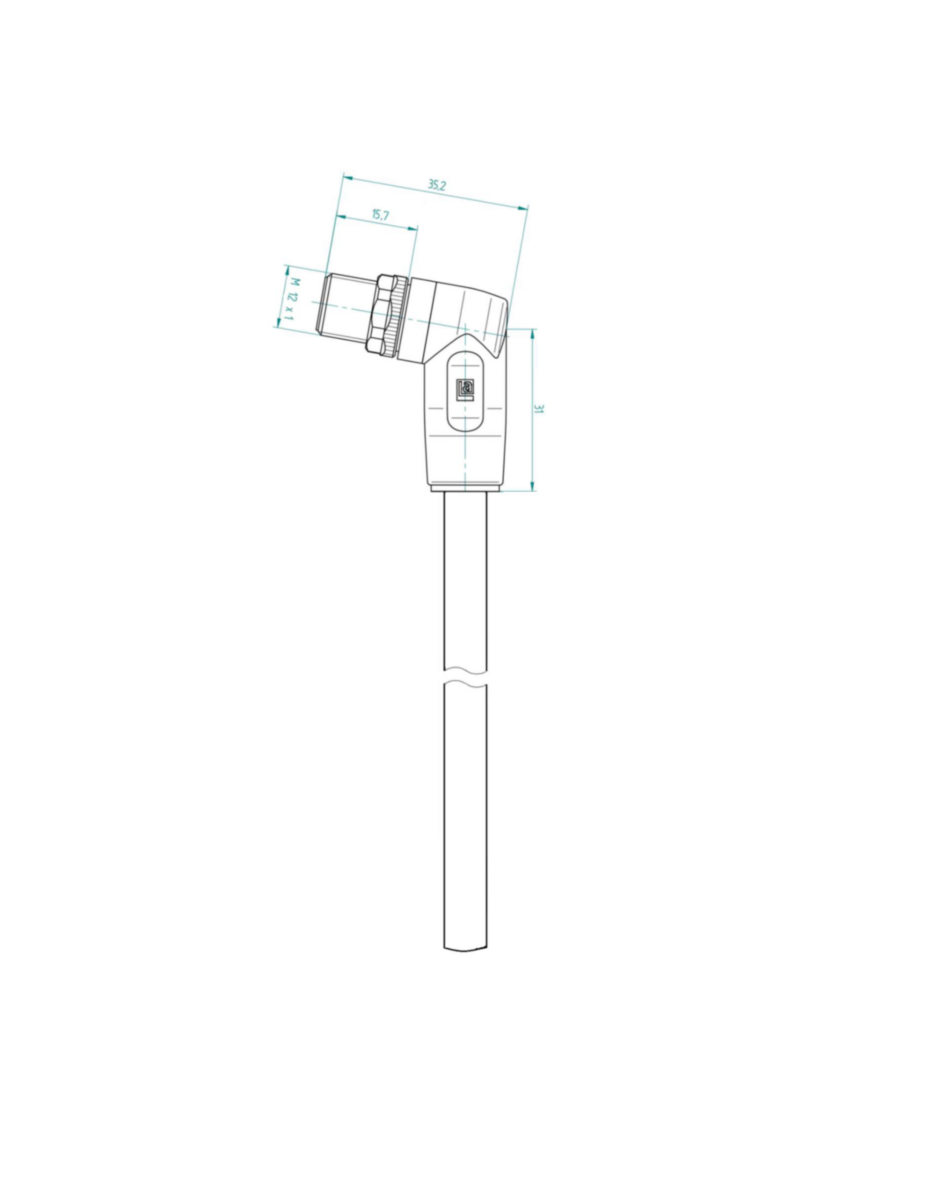

| Pin 1 | Pin 2 | Pin 3 | Pin 4 | PE |
|---|
| black 1 | black 2 | black 3 | black 4 | green-yellow |
| Product Family: |
Power Connector |
| Side 1 Product Sub Family: |
M12 Power |
| Brand: |
Lumberg Automation |
| Connector Type: |
Cordset, single ended |
| Side 1 Type of Contact/Gender: |
male |
| Shielding Type: |
Unshielded |
| Attachment Type: |
Coupling Screw |
| Rated Voltage (UL): |
600 V |
| Rated Impulse Voltage: |
6.0 kV |
| Operating Voltage: |
600 V AC/DC |
| Rated Current (UL)*: |
16 A |
| Contact Resistance: |
≤ 10 mOhm |
| Insulation Resistance: |
˃ 10^9 Ohm |
| Ambient Temperature (Operation)*: |
-40 °C ... 125 °C, notice derating |
| Protection Degree / IP Rating**: |
IP65, IP67, IP69K |
| Design Standard: |
IEC 61076-2-111 |
| Pollution Degree: |
3 acc. to IEC 60664-1 |
| Clearance / Creepage Distance: |
IEC 60664-1 (2020-05) |
| Overvoltage Category: |
III acc. to IEC 60664-1 |
| Contact Base Material: |
CuNi |
| Side 1 Contact Plating: |
Cu/Au |
| Contact Bearer Material: |
PBT GF |
| Contact Bearer Color: |
blue |
| Flammability Class (Contact Bearer): |
UL 94 V-2 |
| Molded Body Material: |
TPE |
| Flammability Class (Molded Body): |
UL 94 HB |
| Attachment Material: |
CuZn |
| Attachment Plating: |
Cu/Ni |
| Fastening Torque (Contact Screw): |
M 12x1: (60-65) Ncm, hand-tight |
| Conductor Resistance: |
≤ 13.3 Ω/km (at 20 °C) |
| Minimal Bending Radius (Fixed Inst): |
˃ 4 x D |
| Minimal Bending Radius (Flexible Inst): |
˃ 7.5 x D |
| Cycles (Bending): |
˃ 10 Mio, max. 50 m/s² |
| Cycles (Torsion): |
˃ 5 Mio @ ± 30 °/1 m |
| Cable Jacket Material: |
PUR |
| Cable Jacket Color: |
black |
| Cable Diameter D: |
ø 8.0 ±0,2 |
| Wire Insulation Material: |
PP |
| Insulated Wire Diameter: |
ø 2.35 mm |
| Ambient Temperature (Fixed Installation): |
-30 °C ... 80 °C |
| Ambient Temperature (Flex Installation): |
-40 °C ... 125 °C |
| Ambient Temperature (Fixed Installation short-term 100h): |
-40 °C ... 80 °C |
| Ambient Temperature (Drag Chain Inst): |
-20 °C ... 60°C |
| UL Cable Type: |
AWM: 20939 |
| Flammability Class (Cable Jacket): |
VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1 |
| Halogenfree: |
DIN VDE 0472 T.815, IEC 60754-1 |
| Oil Resistance: |
HD 22.10 Appendix A, DIN EN 60811-404 |
| Note Derating: |
* Notice derating |
| Protection Degree / IP Rating Note: |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Product Characteristics: |
To ensure ingress protection, please check the O-ring’s position before connecting.
Improperly positioned O-ring leads to ingress protection potential failure. |
| Item # | Item Description | Cable Length |
|---|
| 934852317 | RSWT 5K-911/2 M SW | 2 m |
| 934852318 | RSWT 5K-911/5 M SW | 5 m |
| 934852319 | RSWT 5K-911/10 M SW | 10 m |
| 934852320 | RSWT 5K-911/15 M SW | 15 m |
