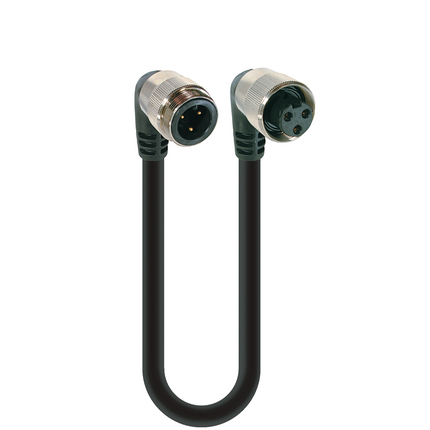

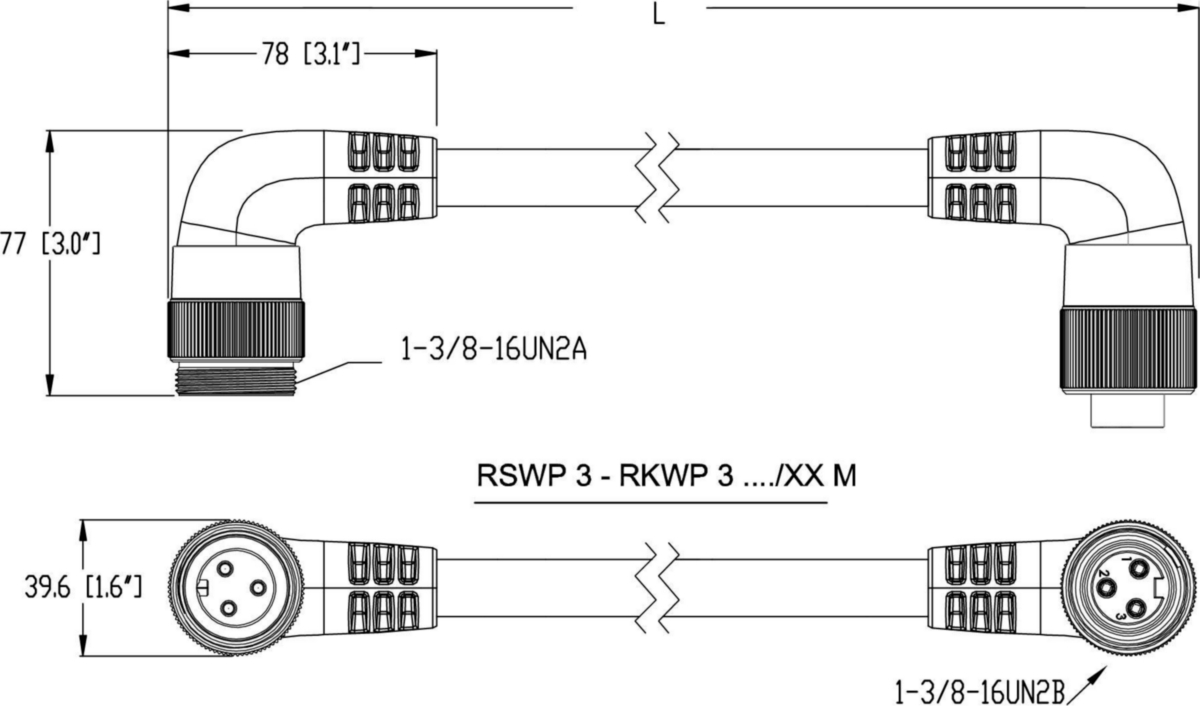

RSWP 3-RKWP 3-800 - Mini Power Double-Ended Cordset: 1 3/8" male angled to 1 3/8" female angled, 3-pin(2+PE), black body, 600 V, 42 A; TPE black cable, 10 AWG




Mini Power Double-Ended Cordset: 1 3/8" male angled to 1 3/8" female angled, 3-pin(2+PE), black body, 600 V, 42 A; TPE black cable, 10 AWG

Product Description

Product Family: Power Connector
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Unshielded
Rated Voltage (UL): 600 V
Rated Current (UL)*: 42 A

Technical Data Side 1

Product Sub Family: 1 3/8"
Type of Contact / Gender: male
Connector Design: angled
Attachment Type: Coupling Nut

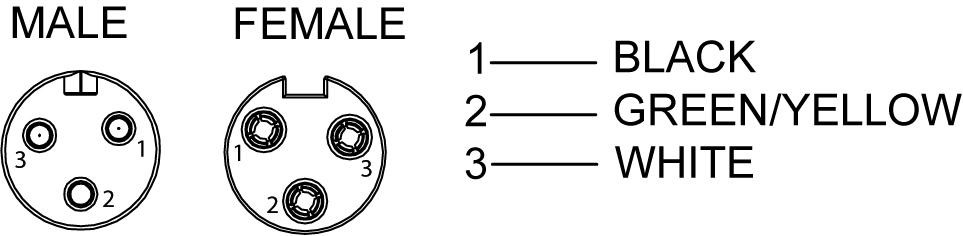

Number of Pins: 3(2+PE)
Ambient Temperature (Operation)*: -30 °C to +90 °C
Protection Degree / IP Rating**: IP 67, IP 68
Contact Base Material: CuSn
Contact Plating: Ni/Au
Contact Bearer Material: PVC
Contact Bearer Color: black
Molded Body Material: PVC
Molded Body Color: black
Attachment Material: CuZn

Cable Data

Cable Number: 800
Conductor Size: 10 AWG
Number of Wires: 3
Cable Jacket Material: TPE
Cable Jacket Color: black
Cable Diameter D: ø 0.474"
Wire Insulation Material: PVC/NYLON
Ambient Temperature (Fixed Installation): -30 °C to +90 °
Flammability Class (Cable Jacket): FT-4

Technical Data Side 2

Product Sub Family, Side 2: 1 3/8"
Type of Contact / Gender, Side 2: female
Connector Design, Side 2: angled
Attachment Type, Side 2: Coupling Screw
Number of Pins, Side 2: 3(2+PE)
Ambient Temperature (Operation), Side 2*: -30 °C to +90 °C
Protection Degree / IP Rating, Side 2**: IP 67, IP 68
Contact Base Material, Side 2: CuSn
Contact Plating, Side 2: Ni/Au
Contact Bearer Material, Side 2: PVC
Contact Bearer Color, Side 2: black
Molded Body Material, Side 2: PVC
Molded Body Color, Side 2: black
Attachment Material, Side 2: CuZn

Approvals

UL-File: E482233
UL: TC-ER

Safety & Environmental Compliance

RoHS Compliant: Yes

Resistances

Oil Resistance: Oil Res I/II
UV Resistance: Sunlight Res

Notes

Protection Degree / IP Rating Note: ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Variants
Item #Item DescriptionCable Length
511000465RSWP 3-RKWP 3-800/0.5M0.5 m
511000466RSWP 3-RKWP 3-800/1M1 m
511000468RSWP 3-RKWP 3-800/2M2 m
511000470RSWP 3-RKWP 3-800/3M3 m
511000471RSWP 3-RKWP 3-800/4M4 m
511000472RSWP 3-RKWP 3-800/5M5 m
511000473RSWP 3-RKWP 3-800/6M6 m
511000474RSWP 3-RKWP 3-800/8M8 m
511000475RSWP 3-RKWP 3-800/10M10 m
511000476RSWP 3-RKWP 3-800/12M12 m
511000477RSWP 3-RKWP 3-800/14M14 m
511000478RSWP 3-RKWP 3-800/15M15 m
511000479RSWP 3-RKWP 3-800/18M18 m
511000480RSWP 3-RKWP 3-800/20M20 m
511000481RSWP 3-RKWP 3-800/22M22 m
511000482RSWP 3-RKWP 3-800/25M25 m
511000483RSWP 3-RKWP 3-800/30M30 m
511000484RSWP 3-RKWP 3-800/35M35 m
511000485RSWP 3-RKWP 3-800/40M40 m
511000486RSWP 3-RKWP 3-800/45M45 m
511000487RSWP 3-RKWP 3-800/50M50 m
511000467RSWP 3-RKWP 3-800/1.5M1.5 m
511000469RSWP 3-RKWP 3-800/2.5M2.5 m
