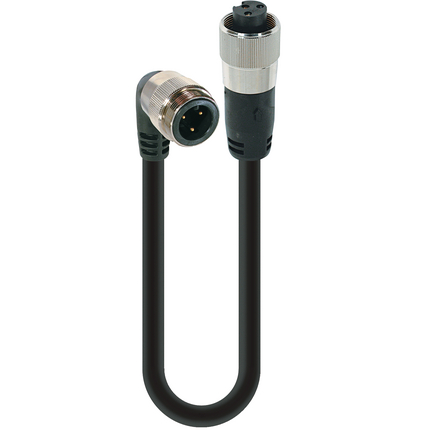

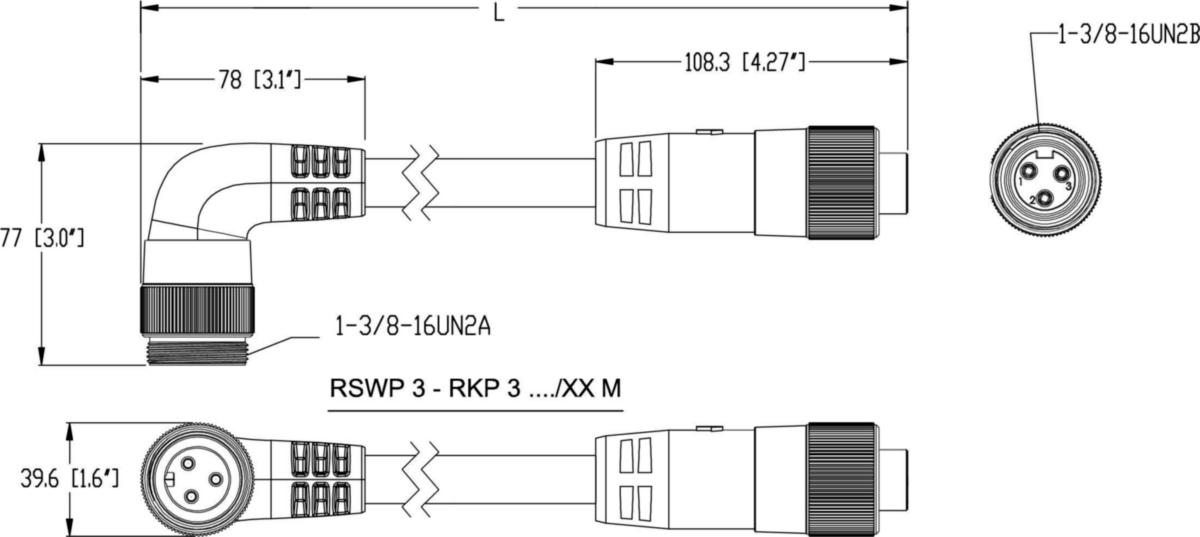

RSWP 3-RKP 3-800 - Mini Power Double-Ended Cordset: 1 3/8" male angled to 1 3/8" female straight, 3-pin(2+PE), black body, 600 V, 30 A; TPE black cable, 10 AWG

Mini Power Double-Ended Cordset: 1 3/8" male angled to 1 3/8" female straight, 3-pin(2+PE), black body, 600 V, 30 A; TPE black cable, 10 AWG

Contact Bearer Material: PVC
Contact Bearer Color: black
Molded Body Material: PVC
Molded Body Color: black
Attachment Material: CuZn

Cable Data

Cable Number: 800
Conductor Size: 10 AWG
Number of Wires: 3
Cable Jacket Material: TPE
Cable Jacket Color: black
Cable Diameter D: ø 0.474"
Wire Insulation Material: PVC/NYLON
Ambient Temperature (Fixed Installation): -30 °C to +90 °
Flammability Class (Cable Jacket): FT-4

Technical Data Side 2

Product Sub Family, Side 2: 1 3/8"
Type of Contact / Gender, Side 2: female
Connector Design, Side 2: straight
Attachment Type, Side 2: Coupling Screw
Number of Pins, Side 2: 3(2+PE)
Ambient Temperature (Operation), Side 2*: -30 °C to +90 °C
Protection Degree / IP Rating, Side 2**: IP 67, IP 68
Contact Base Material, Side 2: CuSn
Contact Plating, Side 2: Ni/Au
Contact Bearer Material, Side 2: PVC
Contact Bearer Color, Side 2: black
Molded Body Material, Side 2: PVC
Molded Body Color, Side 2: black
Attachment Material, Side 2: CuZn


UL-File: E482233

Safety & Environmental Compliance

RoHS Compliant: Yes


Oil Resistance: Oil Res I/II
UV Resistance: Sunlight Res


Protection Degree / IP Rating Note: ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Item #Item DescriptionCable Length
511000442RSWP 3-RKP 3-800/0.5M0.5 m
511000443RSWP 3-RKP 3-800/1M1 m
511000444RSWP 3-RKP 3-800/1.5M1.5 m
511000445RSWP 3-RKP 3-800/2M2 m
511000446RSWP 3-RKP 3-800/2.5M2.5 m
511000447RSWP 3-RKP 3-800/3M3 m
511000448RSWP 3-RKP 3-800/4M4 m
511000449RSWP 3-RKP 3-800/5M5 m
511000450RSWP 3-RKP 3-800/6M6 m
511000451RSWP 3-RKP 3-800/8M8 m
511000452RSWP 3-RKP 3-800/10M10 m
511000453RSWP 3-RKP 3-800/12M12 m
511000454RSWP 3-RKP 3-800/14M14 m
511000455RSWP 3-RKP 3-800/15M15 m
511000456RSWP 3-RKP 3-800/18M18 m
511000457RSWP 3-RKP 3-800/20M20 m
511000458RSWP 3-RKP 3-800/22M22 m
511000459RSWP 3-RKP 3-800/25M25 m
511000460RSWP 3-RKP 3-800/30M30 m
511000461RSWP 3-RKP 3-800/35M35 m
511000462RSWP 3-RKP 3-800/40M40 m
511000463RSWP 3-RKP 3-800/45M45 m
511000464RSWP 3-RKP 3-800/50M50 m

Product Description

Product Family: Power Connector
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Unshielded
Rated Voltage (UL): 600 V
Rated Current (UL)*: 30 A

Technical Data Side 1

Product Sub Family: 1 3/8"
Type of Contact / Gender: male
Connector Design: angled
Attachment Type: Coupling Nut
Number of Pins: 3(2+PE)
Ambient Temperature (Operation)*: -30 °C to +90 °C
Protection Degree / IP Rating**: IP 67, IP 68
Contact Base Material: CuSn
Contact Plating: Ni/Au
