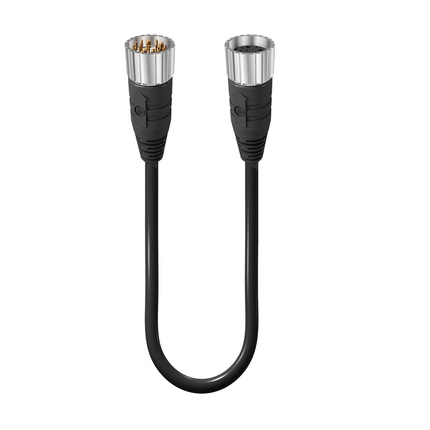

(4)M23 - Double-Ended Cordset: M23 - Male Straight | #Contacts: 19 | M23 - Female Straight | #Contacts: 19 | 120 V / 16x8 A + 3x10 A | Grey PUR Jacket, 19x0.75 mm² (18 AWG), Numeric
Life Cycle Status: Obsolete
Replaced by: RSU 19-RKU 19-242| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 | Pin 9 | Pin 10 | Pin 11 | Pin 12 | Pin 13 | Pin 14 | Pin 15 | Pin 16 | Pin 17 | Pin 18 | Pin 19 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| blue # 1 | blue # 2 | blue # 3 | blue # 4 | blue # 5 | blue # 6 | blue # 7 | blue # 8 | blue # 9 | blue # 10 | blue # 11 | green / yellow | blue # 13 | blue # 14 | blue # 15 | blue # 16 | blue # 17 | blue # 18 | blue # 19 |
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 | Pin 9 | Pin 10 | Pin 11 | Pin 12 | Pin 13 | Pin 14 | Pin 15 | Pin 16 | Pin 17 | Pin 18 | Pin 19 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| blue # 1 | blue # 2 | blue # 3 | blue # 4 | blue # 5 | blue # 6 | blue # 7 | blue # 8 | blue # 9 | blue # 10 | blue # 11 | green / yellow | blue # 13 | blue # 14 | blue # 15 | blue # 16 | blue # 17 | blue # 18 | blue # 19 |
| Product Family: | Power Connector |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Shielding: | Unshielded |
| Rated Voltage: | 125 V |
| Rated Impulse Voltage: | 1.5 kV |
| Rated Current*: | 16 x 8 A (pin-Ø 1 mm), 3 x 10 A (contact-Ø 1.5 mm) |
| Product Sub Family: | M23 Power |
| Type of Contact / Gender: | Pin Contact / Male |
| Connector Design: | Straight (0°) Body |
| Attachment Type: | Coupling Nut |
| Number of Pins: | 19 |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Conductor Cross Section: | 19 x 0.75mm² |
| Ambient Temperature (Operation)*: | - 25 °C to + 80 °C |
| Protection Degree / IP Rating**: | IP67 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance: | acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Polybutylene terephthalate (PBT) |
| Contact Plating: | Gold over Copper (Cu/Au) |
| Contact Bearer Material: | Polybutylene terephthalate (PBT) |
| Contact Bearer Color: | White |
| Flammability Class (Contact Bearer): | UL 94 V0 |
| Molded Body Material: | Thermoplastic Polyurethane (TPU) |
| Molded Body Color: | Black |
| Flammability Class (Molded Body): | UL 94-HB |
| Attachment Material: | Brass (CuZn) |
| Attachment Plating: | Nickel (Ni) |
| O-Ring Material: | Nitrile Butadiene Rubber (NBR) |
| Cable Number: | S3792 |
| Conductor Size: | 0.34 mm² |
| Number of Wires: | 19 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 5 M |
| Conductor material: | Cu |
| Cable Jacket Material: | Polyurethane (PUR) |
| Cable Jacket Color: | Grey |
| Cable Diameter D: | Ø 11.60 |
| Wire Insulation Material: | Polyvinyl chloride (PVC) |
| Insulated Wire Diameter: | Ø 1.20 mm [0.068"] |
| Ambient Temperature (Fixed Installation): | - 40 °C to + 80 °C |
| Ambient Temperature (Flex Installation): | - 5 °C to + 80 °C |
| UL Cable Type: | AWM 20233 |
| Flammability Class (Cable Jacket): | FT-1 |
| Cable Characteristics: | Flexibility: Excellent | Abrasion Resistance: Excellent | Oil & Chemical Resistance: Excellent | UV Resistance: Excellent | Low Temp Performance: Excellent (flexible to -40°C) | Flame Retardance: Good | Halogen-Free: Yes | Mechanical Durability: Excellent (resists impact, tear, and flex) |Drag Chain | Environmental Suitability: Outdoor, oily, wet, or rough environments |
| Product Sub Family, Side 2: | M23 Power |
| Type of Contact / Gender, Side 2: | Socket Contact / Female |
| Connector Design, Side 2: | Straight (0°) Body |
| Attachment Type, Side 2: | Coupling Nut |
| Number of Pins, Side 2: | 19 |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Mating Cycles, Side 2: | ≤ 100 |
| Conductor Cross Section, Side 2: | 19 x 0.75mm² |
| Ambient Temperature (Operation), Side 2*: | - 25 °C to + 80 °C |
| Protection Degree / IP Rating, Side 2**: | IP67 |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance, Side 2: | acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2: | Copper Alloy |
| Contact Plating, Side 2: | Gold over Copper (Cu/Au) |
| Contact Bearer Material, Side 2: | Polyamide (Nylon), PA 66 |
| Contact Bearer Color, Side 2: | Black |
| Flammability Class (Contact Bearer), Side 2: | UL 94-HB |
| Molded Body Material, Side 2: | Thermoplastic Polyurethane (TPU) |
| Molded Body Color, Side 2: | Black |
| Flammability Class (Molded Body), Side 2: | UL 94-HB |
| Attachment Material, Side 2: | Brass (CuZn) |
| Attachment Plating, Side 2: | Nickel (Ni) |
| O-Ring Material, Side 2: | Fluorocarbon rubber (FKM) |
| Note, Side 2: | Do not connect / disconnect under load. |
| RoHS Compliant: | Yes |
| Halogenfree: | Yes |
| Oil Resistance: | Yes |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note Derating: | * Notice derating |
| Particularities: | When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54. |
