RST 5K-736 - M12 Single-Ended Cordset, Industrial Power Applications, PVC black cable, unshielded, male, straight, K-coded, 5-Pin (4+PE), 5x0.75 mm²





M12 Single-Ended Cordset, Industrial Power Applications, PVC black cable, unshielded, AWM: 2587, male, straight, K-coded, 5-pin, 5x0.75 mm², 600 V AC / DC operating voltage, rated current 10 A, -40 °C ... 125 °C (operating temp.), suited for IP65, IP67 environment, IEC 61076-2-111

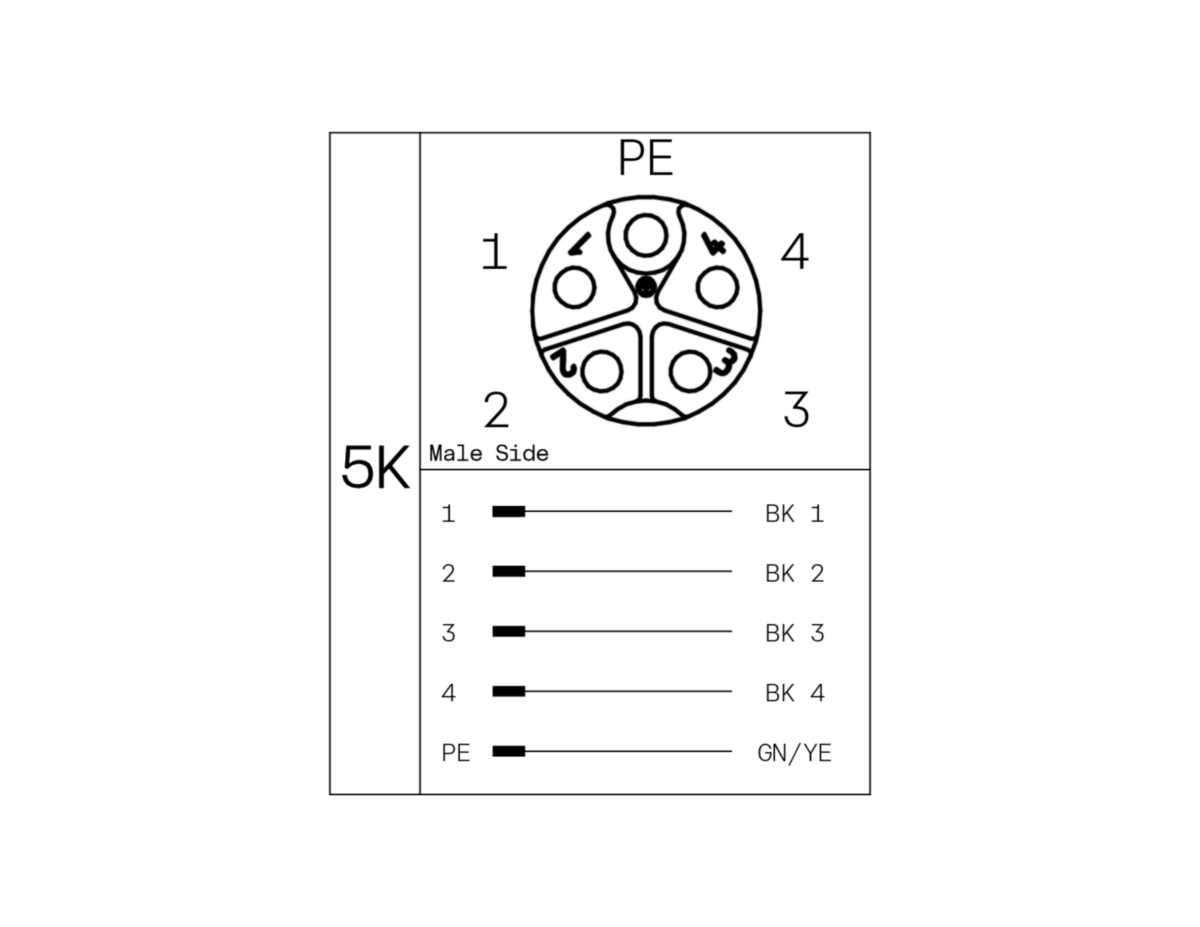

Face View
Pin 1Pin 2Pin 3Pin 4PE
black 1black 2black 3black 4green-yellow

Technical Data

Product Family: Power Connector
Product Sub Family: M12 Power
Brand: Lumberg Automation
Connector Type: Cordset, single ended
Type of Contact / Gender: male
Connector Design: straight
Number of Pins: 5(4+PE)
Coding: K
Shielding: Unshielded
Attachment Type: Coupling Screw
Rated Voltage: 630 V
Rated Voltage (UL): 600 V
Rated Impulse Voltage: 6.0 kV
Operating Voltage: 600 V AC/DC
Rated Current*: 10 A
Rated Current (UL)*: -
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation)*: -40 °C ... 125 °C, notice derating
Protection Degree / IP Rating**: IP65, IP67
Design Standard: IEC 61076-2-111
Pollution Degree: 3 acc. to IEC 60664-1
Clearance / Creepage Distance: IEC 60664-1 (2020-05)
Overvoltage Category: III acc. to IEC 60664-1

Materials

Contact Base Material: CuNi
Contact Plating: Cu/Au
Contact Bearer Material: PBT GF
Contact Bearer Color: blue
Flammability Class (Contact Bearer): UL 94 V-2
Molded Body Material: TPE
Molded Body Color: black
Flammability Class (Molded Body): UL 94 HB
Attachment Material: CuZn
Attachment Plating: Cu/Ni
O-Ring Material: FKM

Additional Technical Data

Fastening Torque (Contact Screw): M 12x1: (60-65) Ncm, hand-tight

Cable Data

Cable Number: 736
Conductor Size: 0.75 mm²
Conductor Resistance: ≤ 26 Ω/km (at 20 °C)
Number of Wires: 5
Minimal Bending Radius (Fixed Inst): ˃ 4 x D
Minimal Bending Radius (Flexible Inst): ˃ 7.5 x D
Cycles (Bending): ˃ 1 Mio, max. 50 m/s²
Cycles (Torsion): -
Conductor material: Cu
Cable Jacket Material: PVC
Cable Jacket Color: black
Cable Diameter D: ø 6.7 ±0,2
Wire Insulation Material: PVC
Insulated Wire Diameter: ø 1.85mm
Ambient Temperature (Fixed Installation): -15 °C ... 80 °C
Ambient Temperature (Flex Installation): -5 °C to +90 °C
Ambient Temperature (Fixed Installation short-term 100h): -30 °C ... 80 °C
Ambient Temperature (Drag Chain Inst): 0 °C ... 60 °C
UL Cable Type: AWM: 21179
Flammability Class (Cable Jacket): VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1

Approvals

UL-File: -
VDE: -

Safety & Environmental Compliance

RoHS Compliant: yes

Resistances

Halogenfree: -
Oil Resistance: HD 22.10 Appendix A, DIN EN 60811-404

Notes

Note Derating: * Notice derating
Protection Degree / IP Rating Note: ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Product Characteristics: To ensure ingress protection, please check the O-ring’s position before connecting. Improperly positioned O-ring leads to ingress protection potential failure.
Variants
Item #Item DescriptionCable Length
934851025RST 5K-736/2 M2 m
934851026RST 5K-736/5 M5 m
934851027RST 5K-736/10 M10 m
934851028RST 5K-736/15 M15 m
RST_5K.zip
Short Form Catalog POWER English.pdf
Short Form Catalog POWER German.pdf
EU Declaration of conformity
Description: M12-K-PG-200902-0214V02
