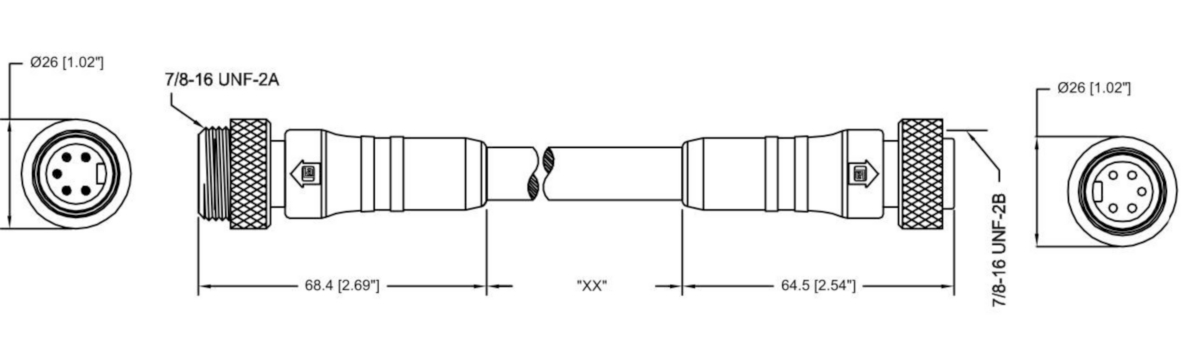

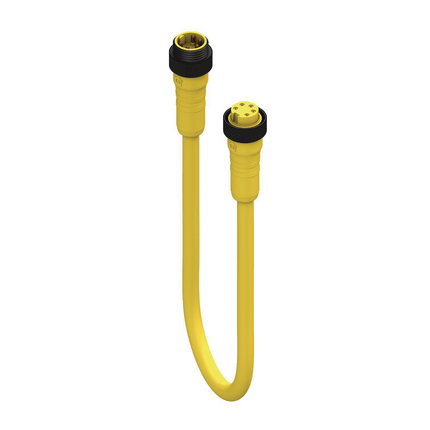

(4)7/8" Power Double-Ended Cordset: Male straight to female straight, 5-pin, yellow body, 300 V (UL), 5.6 A (UL); TPE yellow cable, 18 AWG
| Product Family: | Power Connector |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Shielding Type: | Unshielded |
| Rated Voltage (UL): | 300 V |
| Rated Current (UL)*: | 5.6 A |
| Side 1 Product Sub Family: | MINI 7/8" |
| Side 1 Type of Contact/Gender: | Pin Contact / Male |
| Connector Design: | Molded | 7/8" Male | Straight |
| Attachment Type: | Male Thread, Coupling Screw |

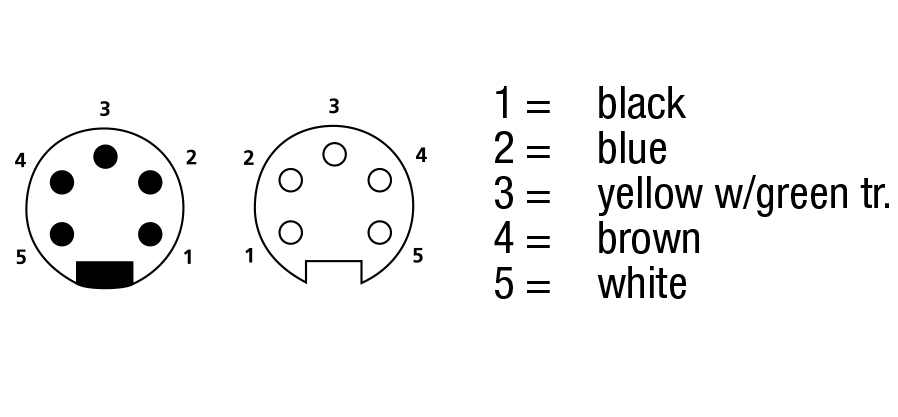

| Number of Pins: | 5 |
| Coding, Side 1: | A |
| Side 1 Contact Resistance: | ≤ 10 mOhm |
| Ambient Temperature (Operation)*: | -40°C to +90°C |
| Protection Degree / IP Rating**: | IP 67 / NEMA 6P |
| Contact Base Material: | Copper Alloy (CuZn) |
| Side 1 Contact Plating: | gold over silver plated |
| Contact Bearer Material: | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color: | Yellow |
| Molded Body Material: | Thermoplastic polyurethane (TPU) |
| Molded Body Color: | Yellow |
| Attachment Material: | Aluminum (Al) |
| Attachment Plating: | Anodized Black |
| Cable Number: | 794 |
| Conductor Size: | 18 AWG |
| Number of Wires: | 5 |
| Cable Jacket Material: | TPE |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | .304" (7.7 mm) |
| UL Cable Type: | PLTC |
| Side 2 Product Sub Family: | MINI 7/8" |
| Side 2 Type of Contact/Gender: | Socket Contact / Female |
| Connector Design, Side 2: | Molded | 7/8" Female | Straight |
| Attachment Type, Side 2: | Female Thread, Coupling Nut |
| Number of Pins, Side 2: | 5 |
| Coding, Side 2: | A |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Ambient Temperature (Operation), Side 2*: | -40°C to +90°C |
| Protection Degree / IP Rating, Side 2**: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. |
| Contact Base Material, Side 2: | Copper Alloy (CuZn) |
| Contact Plating, Side 2: | gold over silver plated |
| Contact Bearer Material, Side 2: | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color, Side 2: | Yellow |
| Molded Body Material, Side 2: | Thermoplastic polyurethane (TPU) |
| Molded Body Color, Side 2: | Yellow |
| Attachment Material, Side 2: | Aluminum (Al) |
| Attachment Plating, Side 2: | Anodized Black |
| UL: | UL 2238 Recognized |
| RoHS Compliant: | yes |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Item # | Item Description | Cable Length |
|---|---|---|
| 633 | RSRK 50-794/30 F | |
| 632 | RSRK 50-794/20 F | |
| 500004197 | RSRK 50-794/0.5M | 0.5 m |
| 500004067 | RSRK 50-794/1F | 1 ft |
| 500004198 | RSRK 50-794/1M | 1 m |
| 500002972 | RSRK 50-794/1.5F | 1.5 ft |
| 500004077 | RSRK 50-794/2F | 2 ft |
| 500004199 | RSRK 50-794/2M | 2 m |
| 500002971 | RSRK 50-794/3F | 3 ft |
| 500004200 | RSRK 50-794/3M | 3 m |
| 500004201 | RSRK 50-794/4M | 4 m |
| 500004202 | RSRK 50-794/5M | 5 m |
| 500002948 | RSRK 50-794/6F | 6 ft |
| 500004203 | RSRK 50-794/6M | 6 m |
| 629 | RSRK 50-794/6 F | 6 ft |
| 500003156 | RSRK 50-794/7F | 7 ft |
| 500004204 | RSRK 50-794/7M | 7 m |
| 500004205 | RSRK 50-794/8M | 8 m |
| 500003157 | RSRK 50-794/9F | 9 ft |
| 500004206 | RSRK 50-794/9M | 9 m |
| 500002991 | RSRK 50-794/10F | 10 f |
| 500004207 | RSRK 50-794/10M | 10 m |
| 500002949 | RSRK 50-794/12F | 12 ft |
| 500002950 | RSRK 50-794/15F | 15 ft |
| 500004208 | RSRK 50-794/15M | 15 m |
| 631 | RSRK 50-794/15 F | 15 ft |
| 500002951 | RSRK 50-794/20F | 20 ft |
| 500004209 | RSRK 50-794/20M | 20 m |
| 500004210 | RSRK 50-794/25M | 25 m |
| 500002952 | RSRK 50-794/30F | 30 ft |
| 500003094 | RSRK 50-794/40F | 40 ft |
| 500002970 | RSRK 50-794/50F | 50 ft |
| 500003309 | RSRK 50-794/60F | 60 ft |
| 500003173 | RSRK 50-794/70F | 70 ft |
| 500004269 | RSRK 50-794/115F | 115 ft |
