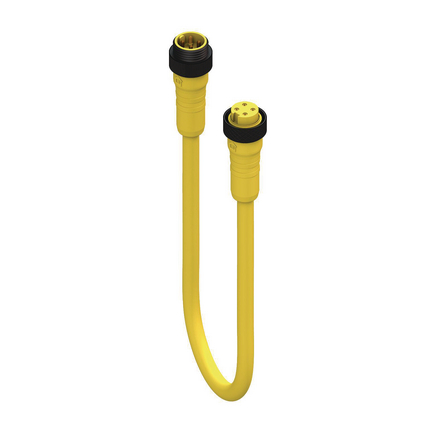

RSRK 40-637 - 7/8" Power Double-Ended Cordset: Male straight to female straight, 4-pin, yellow body, 300 V (UL), 5.6 A (UL); TPE yellow cable, 18 AWG




7/8" Power Double-Ended Cordset: Male straight to female straight, 4-pin, yellow body, 300 V (UL), 5.6 A (UL); TPE yellow cable, 18 AWG

Data Sheet
Share

Product Description

Product Family: Power Connector
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Unshielded
Rated Voltage (UL): 300 V
Rated Current (UL)*: 5.6 A

Technical Data Side 1

Product Sub Family: 7/8"
Type of Contact / Gender: male
Connector Design: straight
Attachment Type: Coupling nut with external threads
Number of Pins: 4
Ambient Temperature (Operation)*: -40°C to +90°C
Protection Degree / IP Rating**: IP 67 / NEMA 6P
Contact Base Material: CuZn
Contact Plating: gold over silver plated
Contact Bearer Material: TPU
Contact Bearer Color: yellow
Molded Body Material: TPU
Molded Body Color: yellow

Cable Data

Cable Number: 637
Conductor Size: 18 AWG
Number of Wires: 4
Cable Jacket Material: TPE
Cable Jacket Color: Yellow
Cable Diameter D: .280" (7.1 mm)
UL Cable Type: PLTC

Technical Data Side 2

Product Sub Family, Side 2: 7/8" Circular Connectors
Type of Contact / Gender, Side 2: female
Connector Design, Side 2: straight
Attachment Type, Side 2: Coupling nut with internal threads
Number of Pins, Side 2: 4
Ambient Temperature (Operation), Side 2*: -40°C to +90°C
Protection Degree / IP Rating, Side 2**: * only if mounted and locked in combination with Hirschmann / Lumberg connector.
Contact Base Material, Side 2: CuZn
Contact Plating, Side 2: gold over silver plated
Contact Bearer Material, Side 2: TPU
Contact Bearer Color, Side 2: yellow
Molded Body Material, Side 2: TPU
Molded Body Color, Side 2: yellow

Approvals

UL: UL 2238 Recognized

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Protection Degree / IP Rating Note: ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

History

Update and Revision: Revision Number: 0.72 Revision Date: 02-03-2025
Variants
Item #Item DescriptionCable Length
17565RSRK 40-637/45 F
12440RSRK 40-637/20 F
17564RSRK 40-637/30 F
500004230RSRK 40-637/0.5M0.5 m
500003149RSRK 40-637/1F1 ft
500004231RSRK 40-637/1M1 m
500003150RSRK 40-637/2F2 ft
500004232RSRK 40-637/2M2 m
500003090RSRK 40-637/3F3 ft
500004233RSRK 40-637/3M3 m
500004234RSRK 40-637/4M4 m
500004235RSRK 40-637/5M5 m
500004236RSRK 40-637/6M6 m
500002730RSRK 40-637/6F6 ft
500004237RSRK 40-637/7M7 m
500004238RSRK 40-637/8M8 m
500004239RSRK 40-637/9M9 m
500004240RSRK 40-637/10M10 m
500002727RSRK 40-637/12F12 ft
500004241RSRK 40-637/15M15 m
500002781RSRK 40-637/15F15 ft
500004242RSRK 40-637/20M20 m
500002728RSRK 40-637/20F20 ft
500004243RSRK 40-637/25M25 m
500002729RSRK 40-637/30F30 ft
600005415RSRK 40-637/40F40 ft
500000060RSRK 40-637/45F45 ft
500003071RSRK 40-637/60F60 ft
