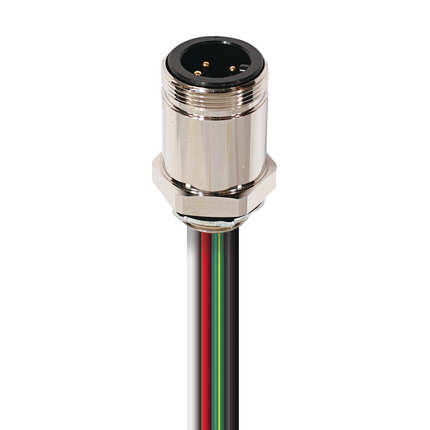

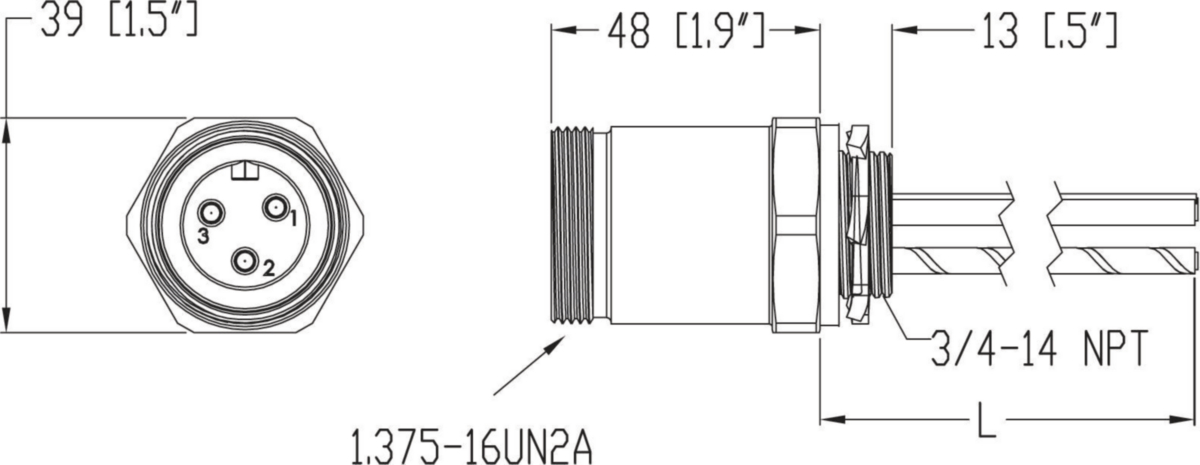

RSFP 3-3/4NPT-800 - Mini Power Receptacle Connector: 1 3/8", male, front mount, 3-pin(2+PE), silver housing, 600 V, 30 A, 10 AWG




Mini Power Receptacle Connector: 1 3/8", male, front mount, 3-pin(2+PE), silver housing, 600 V, 30 A, 10 AWG

Data Sheet
Share

Technical Data

Product Family: Power Connector
Product Sub Family: Mini Power 1-3/8"
Brand: Lumberg Automation
Connector Type: Receptacle
Type of Contact / Gender: male
Connector Design: straight
Number of Pins: 3(2+PE)
Shielding: Unshielded
Rated Voltage (UL): 600 V
Rated Current (UL): 30 A
Mating Cycles: ≤ 100
Ambient Temperature (Operation): -40°C to +90°C
Protection Degree / IP Rating: IP65, IP67

Materials

Contact Base Material: Cu Alloy
Contact Plating: Au
Contact Bearer Material: PVC
Contact Bearer Color: black
Housing Material: Brass
Housing Plating: Ni
Housing Color: Silver

Cable Data

Number of Wires: 3
Conductor material: Cu
Wire Insulation Material: PVC
Insulated Wire Diameter: ø 0.175 in
Ambient Temperature (Fixed Installation): -40 °C to +90 °C

Approvals

UL-File: UL: E482233
UL: UL 2237
CSA: C-UL LISTED: E482233

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Protection Degree / IP Rating Note: * only if mounted and locked in combination with Hirschmann / Lumberg connector.
Variants
Item #Item DescriptionCable Length
511000769RSFP 3-3/4NPT-800/0.5M0.5 m
511000770RSFP 3-3/4NPT-800/1M1 m
511000771RSFP 3-3/4NPT-800/3M3 m
Catalog
Short Form Catalog POWER English.pdf
Download
Short Form Catalog POWER German.pdf
Download
Face View Image
Download
No accessories are available for this product
