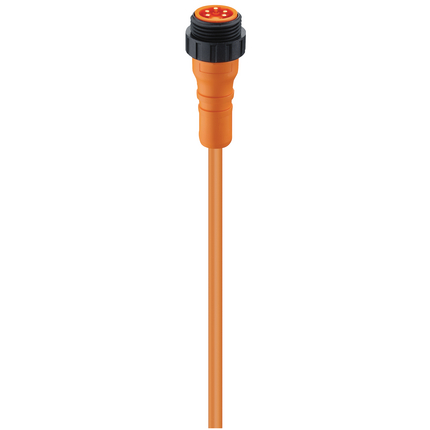

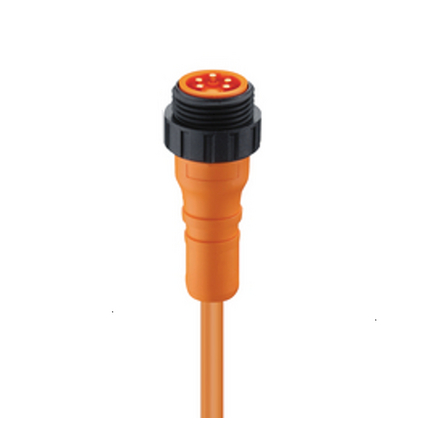

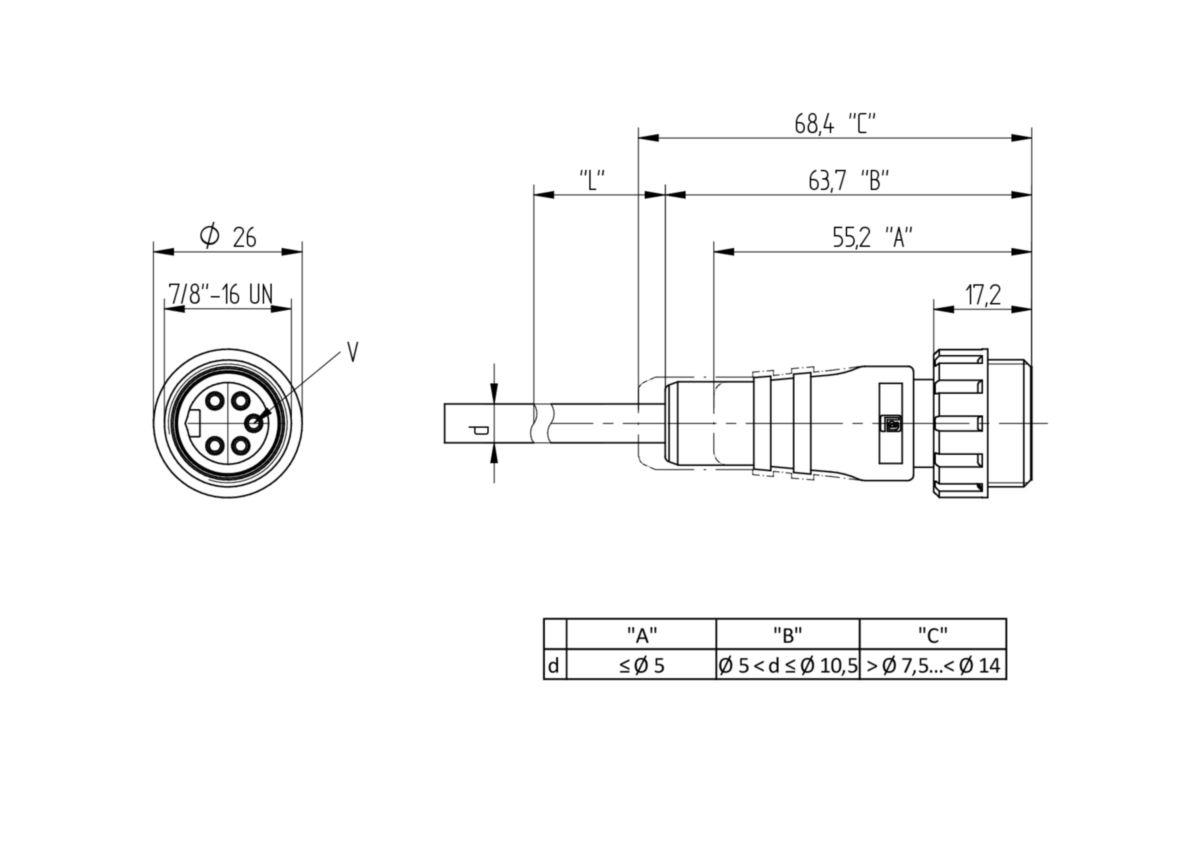

RS 50-04 - 7/8" Power Single-Ended Cordset: Male, straight, 5-pin(4+PE), orange body, 230 V AC/DC, 9 A; PVC orange cable, 0.50 mm²




7/8" Power Single-Ended Cordset: Male, straight, 5-pin(4+PE), orange body, 230 V AC/DC, 9 A; PVC orange cable, 0.50 mm²

Technical Data

Product Family: Power Connector
Product Sub Family: 7/8" Circular Connectors
Brand: Lumberg Automation
Connector Type: Cordset, single ended
Type of Contact / Gender: male
Connector Design: straight
Number of Pins: 5(4+PE)
Shielding: Unshielded
Attachment Type: Coupling Screw
Rated Voltage: 250 V AC/DC
Operating Voltage: 230 V AC/DC
Rated Current: 9 A
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Ambient Temperature (Operation): -40 °C to +90 °C
Protection Degree / IP Rating: IP68 (2h at 10 bar)
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material: CuZn
Contact Plating: Cu/Au
Contact Bearer Material: TPU
Contact Bearer Color: orange
Molded Body Material: TPU
Molded Body Color: orange
Attachment Material: PA, black

Cable Data

Cable Number: 04
Number of Wires: 5
Minimal Bending Radius (Fixed Inst): ˃ 5 x D
Minimal Bending Radius (Flexible Inst): ˃ 10 x D
Conductor material: Cu
Cable Jacket Material: PVC
Cable Jacket Color: orange
Cable Diameter D: ø 6.80 ±0.20 mm
Wire Insulation Material: PVC
Insulated Wire Diameter: ø 1.80 mm
Ambient Temperature (Fixed Installation): - 40 °C to +90 °C
Ambient Temperature (Flex Installation): + 5 °C to +90 °C
UL Cable Type: AWM: 2654
Flammability Class (Cable Jacket): DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1; flame-retardant and self-extinguishing

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Protection Degree / IP Rating Note: * only if mounted and locked in combination with Hirschmann / Lumberg connector.
Note Derating: * Notice derating
Note: Do not connect / disconnect under load.
Variants
Item #Item DescriptionCable Length
14185RS 50-04/0,9 M0.9 m
11574RS 50-04/2 M2 m
11575RS 50-04/5 M5 m
934637131RS 50-04/15 M15 m
