(4)Single-Ended Cordset | 7/8"- Female Straight | #Contacts: 4 | 600 V / 10 A | Cable: TPE Yellow; 4x16 AWG; US | UL 2238; cURus

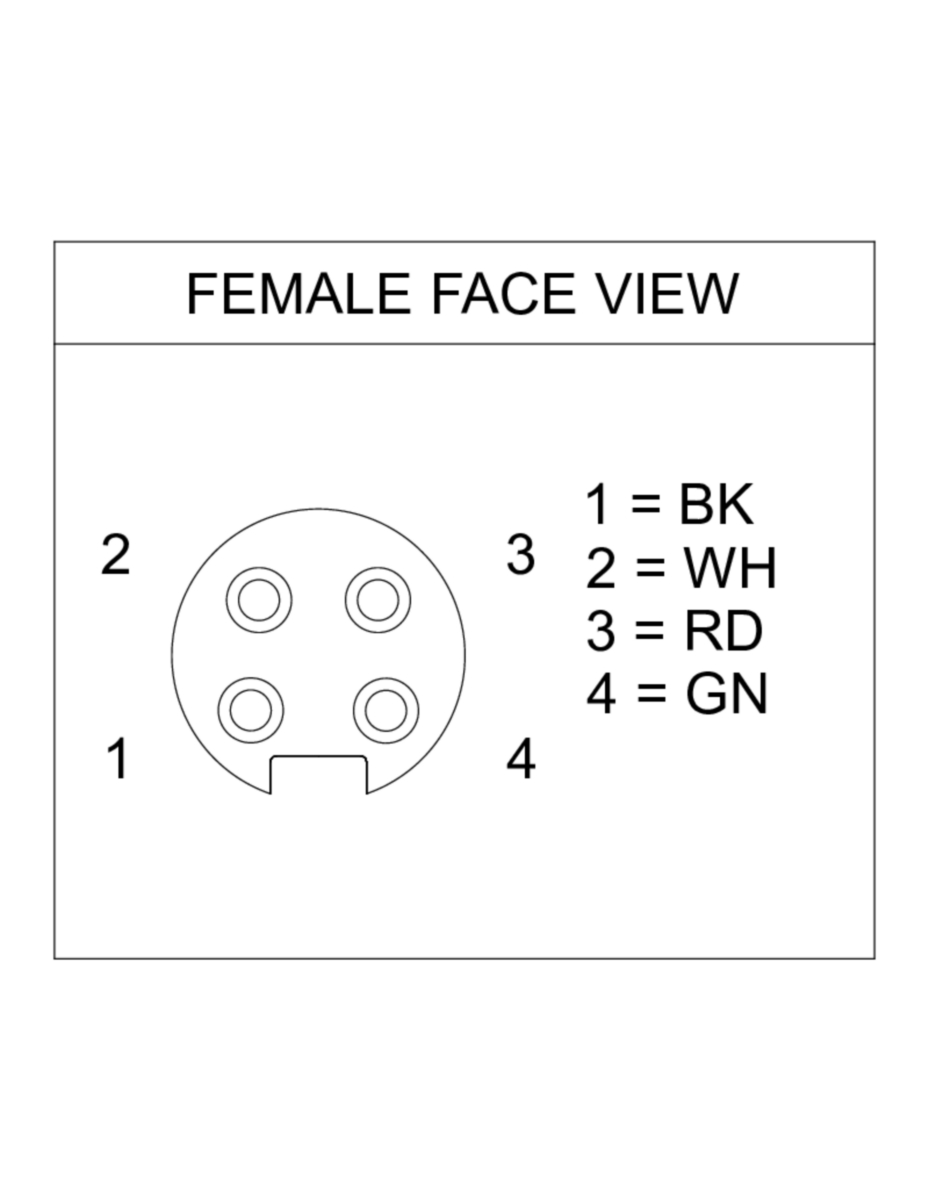

| Pin 1 | Pin 2 | Pin 3 | Pin 4 |
|---|---|---|---|
| black | white | red | green |
| Product Family: | Power Connector |
| Side 1 Product Sub Family: | 7/8" (2, 3, 4, 5, 6 contacts) |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, single ended |
| Side 1 Type of Contact/Gender: | Socket Contact / Female |

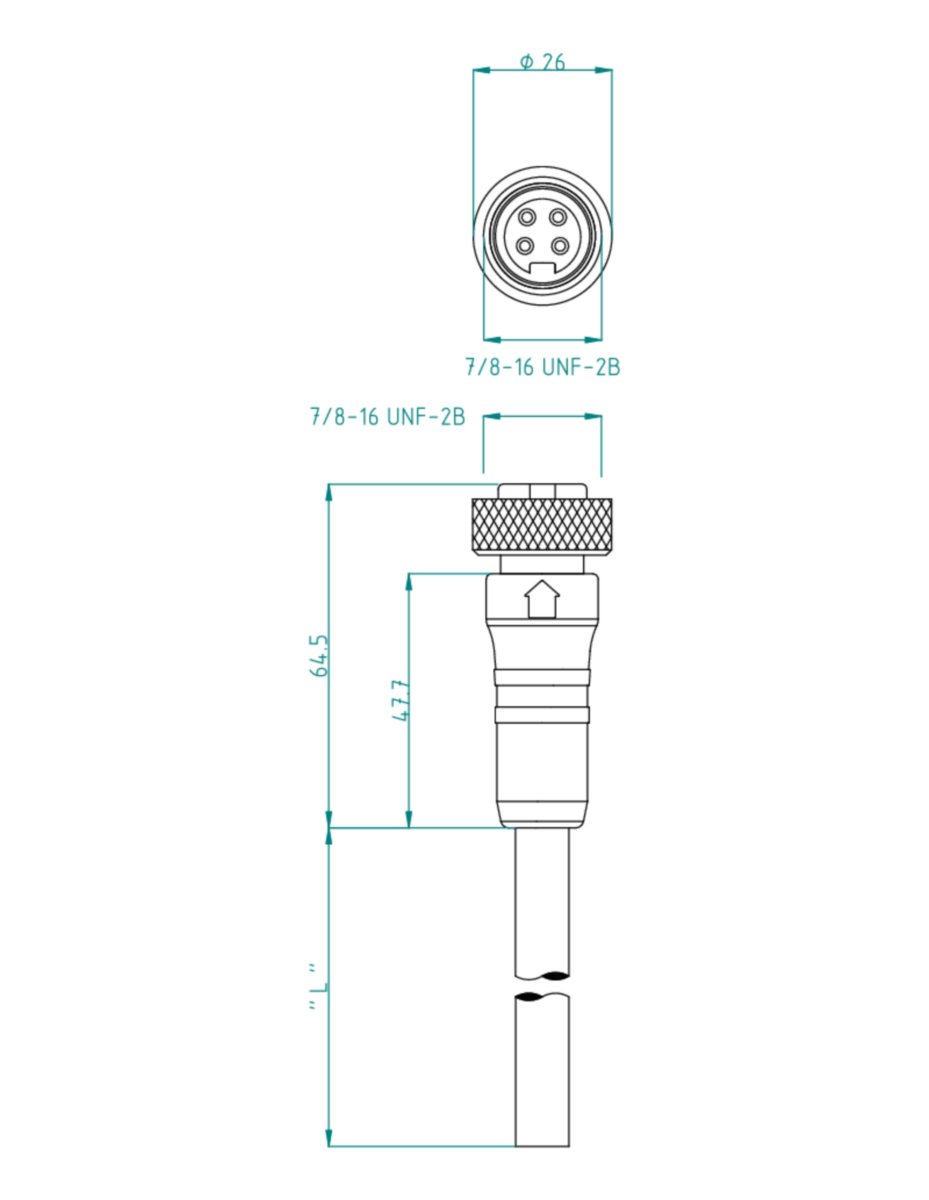

| Connector Design: | 7/8" | Female | 4 Pole | 0° |
| Number of Pins: | 4 |
| Coding, Side 1: | A |
| Shielding Type: | Unshielded |
| Attachment Type: | Female Thread (round coupling nut) |
| Voltage Rating: | 600 V |
| Rated Voltage (UL): | 600 V |
| Current Rating: | 10 A |
| Rated Current (UL)*: | 10 |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | - 40 °C to + 90°C |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Brass (CuZn) |
| Side 1 Contact Plating: | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material: | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color: | Yellow |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Molded Body Material: | Thermoplastic polyurethane (TPU) |
| Molded Body Color: | Yellow |
| Flammability Class (Molded Body): | UL 94 HB |
| Attachment Material: | Aluminum (Al) |
| Attachment Plating: | Anodized Black |
| Fastening Torque (Attachment): | 7/8'': 70 Ncm, hand-tight |
| Cable Number: | 839 |
| Conductor Size: | 16 AWG |
| Number of Wires: | 4 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 5 mio |
| Conductor Material: | Cu |
| Cable Jacket Material: | Thermoplastic Elastomers (TPE) |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | Ø 8.70 mm (0.342") |
| Wire Insulation Material: | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter: | Ø 2.56 mm (0.101") |
| Ambient Temperature (Fixed Installation): | - 30 °C to +90 °C |
| Ambient Temperature (Flex Installation): | + 5 °C to +90 °C |
| UL Cable Type: | UL: NEC Type TC-ER (UL 1277) |
| Flammability Class (Cable Jacket): | UL 1685, CSA FT4, IEEC 1202 |
| Cable Characteristics: | Flexibility: Excellent | Abrasion Resistance: Very Good | Chemical Resistance: resists water, oils, greases, acids, alkalis, and solvents| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact, tear, and flex) | Environmental Suitability: outdoor, oily, wet, or rough environments |
| UL-File: | E315587 |
| UL: | UL 2238; cURus |
| RoHS Compliant: | Yes |
| Halogenfree: | No |
| Oil Resistance: | Yes |
| Note Derating: | * Notice derating |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Item # | Item Description | Cable Length |
|---|---|---|
| 500004282 | RK 40-839/2M | 2 m |
| 500004414 | RK 40-839/3M | 3 m |
| 500004302 | RK 40-839/4M | 4 m |
| 500003208 | RK 40-839/5M | 5 m |
| 500004303 | RK 40-839/6M | 6 m |
| 500003227 | RK 40-839/10M | 10 m |
| 20128 | RK 40-839/10 M | 10 m |
| 500004637 | RK 40-839/15M | 15 m |
| 500004304 | RK 40-839/16M | 16 m |
| 500004062 | RK 40-839/17M | 17 m |
| 500003228 | RK 40-839/20M | 20 m |
| 540003220 | RK 40-839/22M | 22 m |
| 540004472 | RK 40-839/23M | 23 m |
| 500004408 | RK 40-839/25M | 25 m |
| 500004457 | RK 40-839/30M | 30 m |
| 500004763 | RK 40-839/35M | 35 m |
| 500004458 | RK 40-839/40M | 40 m |
| 500004428 | RK 40-839/50M | 50 m |
| 500004667 | RK 40-839/60M | 60 m |
| 500004409 | RK 40-839/70M | 70 m |
| 500004482 | RK 40-839/90M | 90 m |
