(4)7/8" Molded Cordset Female Straight | #Contacts: 3 | 300 V / 8 A | Cable CPE Yellow, 3x18 AWG, AUTO | cURus 2238
| Product Family: | Power Connector |
| Product Sub Family: | 7/8" (2, 3, 4, 5, 6 contacts) |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, single ended |
| Type of Contact / Gender: | Socket Contact / Female |
| Connector Design: | Straight (0°) Body w/ Internal Thread Coupling Nut |

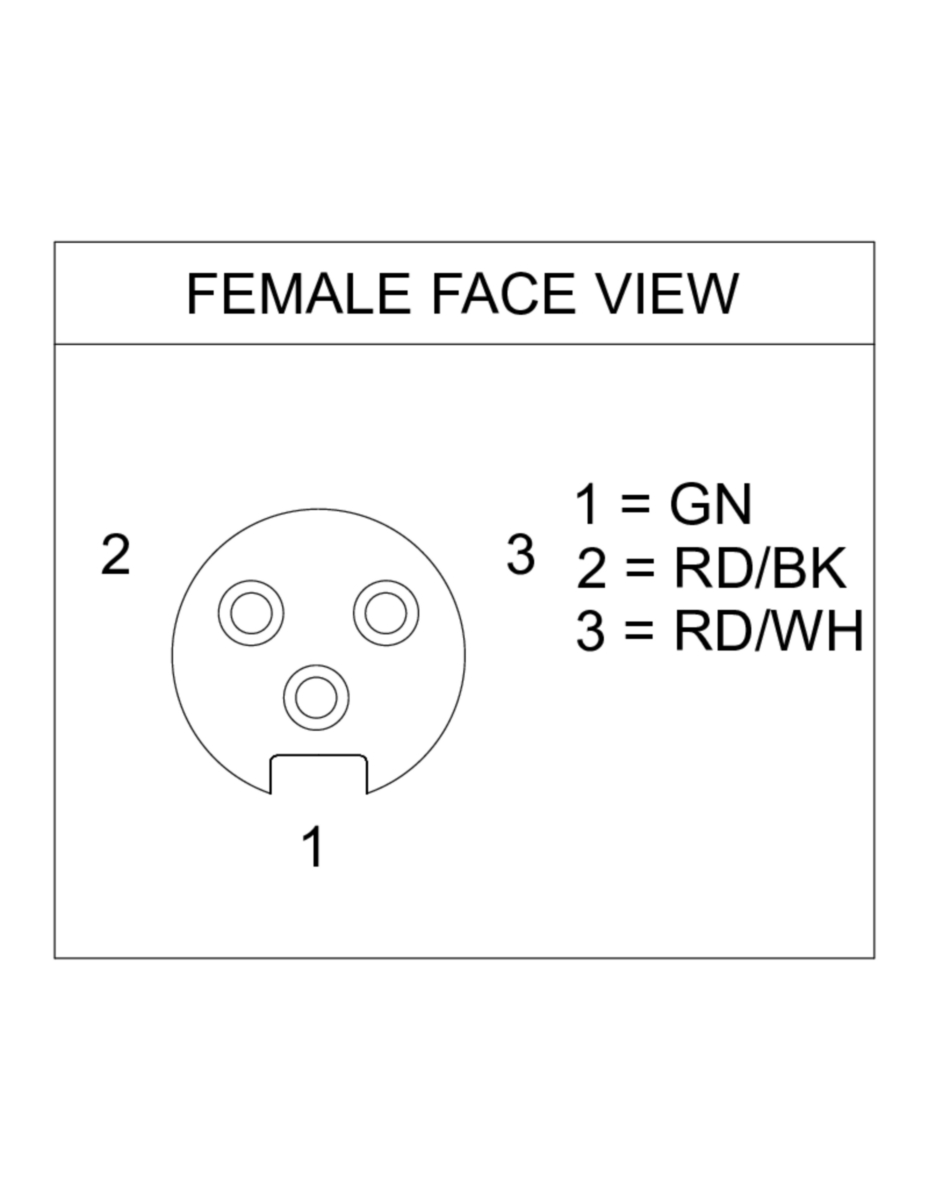

| Number of Pins: | 3 |
| Shielding: | Unshielded |
| Attachment Type: | Round Coupling Nut |
| Rated Voltage: | 300 V |
| Rated Current*: | 8 A |
| Ambient Temperature (Operation)*: | - 40 °C to + 90°C |
| Protection Degree / IP Rating**: | IP65, IP67, NEMA 6P |
| Contact Base Material: | Brass (CuZn) |
| Contact Plating: | Gold over Silver (Au / Ag) |
| Contact Bearer Material: | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color: | Yellow |
| Molded Body Material: | Thermoplastic polyurethane (TPU) |
| Molded Body Color: | Yellow |
| Attachment Material: | Aluminum (Al), Anodized Black |
| Cable Number: | 619 |
| Conductor Size: | 18 AWG |
| Number of Wires: | 3 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Conductor material: | Cu |
| Flammability Class (Cable Jacket): | FT-2 |
| Cable Characteristics: | See downloads tab for details |
| UL-File: | E315587 |
| RoHS Compliant: | Yes |
| Note Derating: | * Notice derating |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Item # | Item Description | Cable Length |
|---|---|---|
| 500000001 | RK 30-619/6F | 6 ft |
| 500000025 | RK 30-619/12F | 12 ft |
| 500001038 | RK 30-619/15F | 15 ft |
| 500000072 | RK 30-619/20F | 20 ft |
| 500001040 | RK 30-619/30F | 30 ft |
