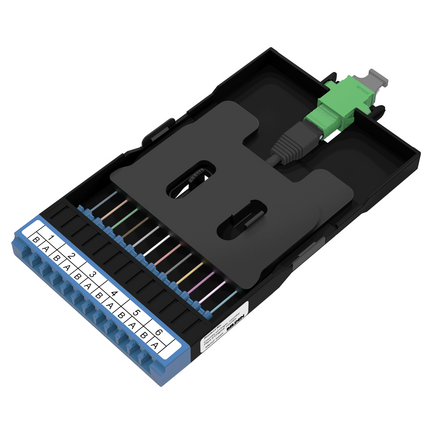

(4)FX DCX FRAME, OS2, 06 PORTS, LC DUPLEX, MPO-12 (FEMALE),TYPE-A, NON-FLIP,BLUE ADAPTERS
| Suitable Applications: | DCX, Data Centers, Central Equipment Room |
| Fiber Type |
|---|
| OS2 |
| Weight: | 0.156 lbs |

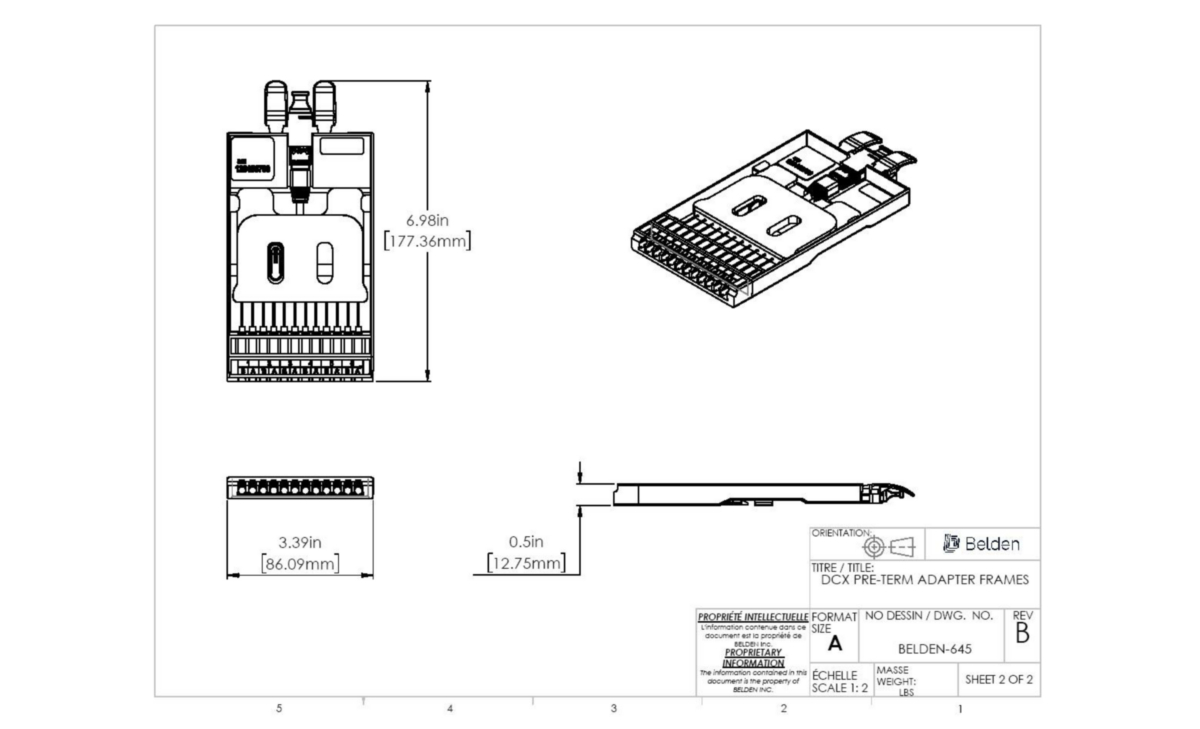

| Height: | 0.500 in |
| Width: | 3.400 in |
| Depth: | 6.800 in |
| Max Capacity: | 12 Fibers |
| Operating Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -10°C to +75°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Frame Assembly | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Blue | LC Duplex |
| Adapter Sleeve | Zirconia-Ceramic |
| Description | Max. Insertion Loss | Min. Return Loss |
|---|---|---|
| LC- Keyed | 0.25 dB | -65 dB |
| MPO-Female | 0.35 dB | -60 dB |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | DCX Frames, Modules, and Patch Panels |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box |
| Update and Revision: | Revision Number: 0.62 Revision Date: 02-12-2025 |
