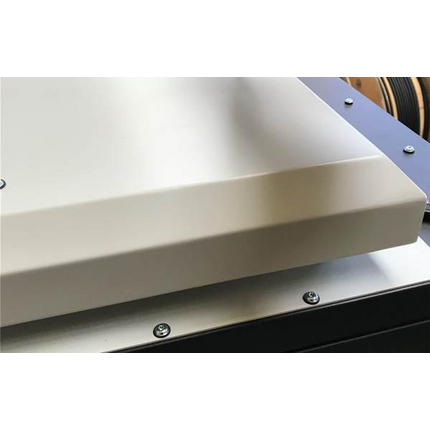

(4)Cover for fan unit installation on IP54 EID E-Series cabinet

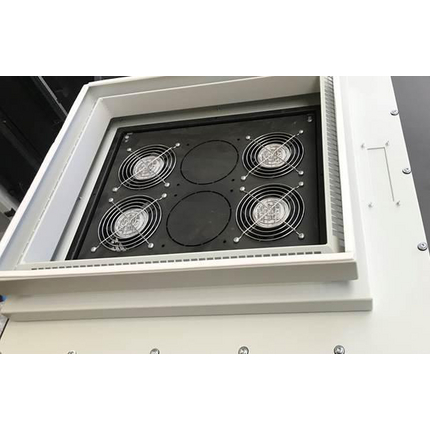

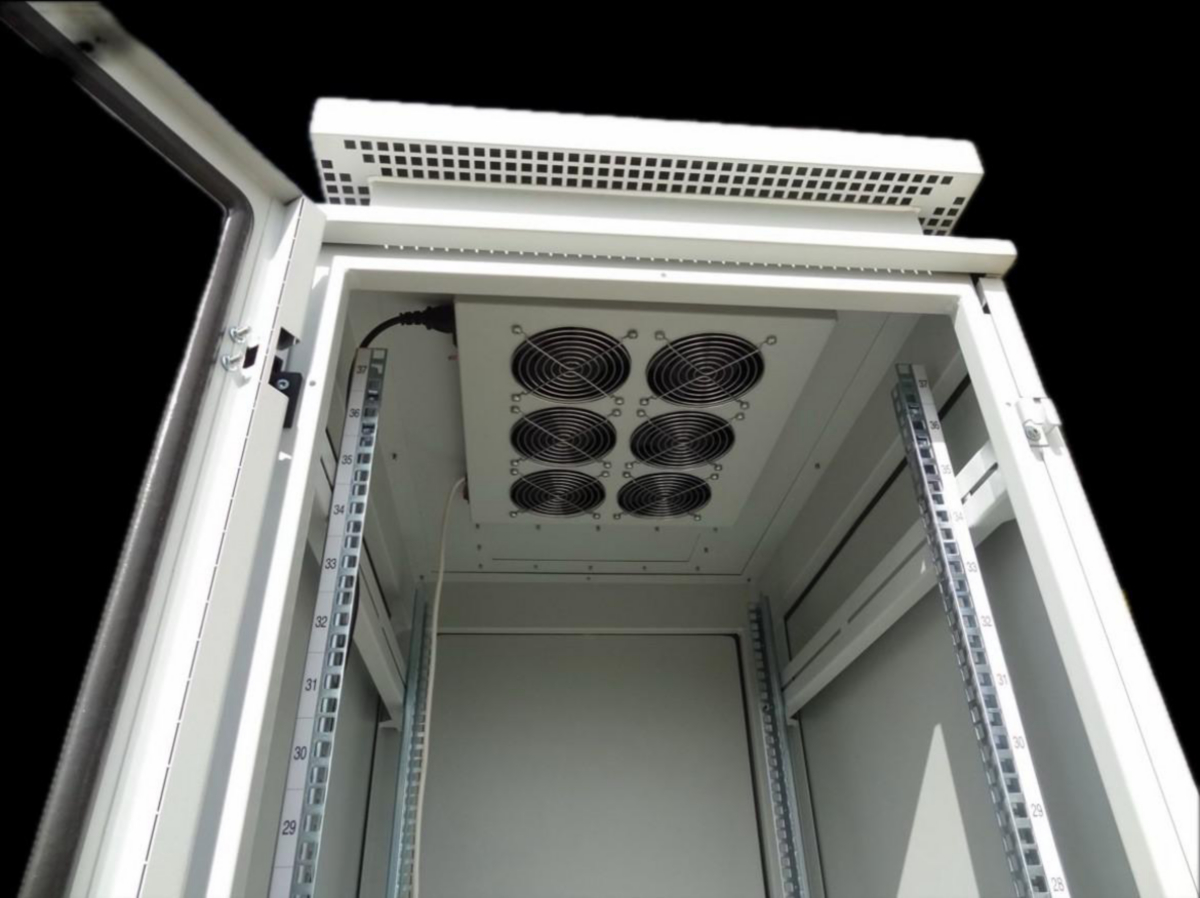

| Suitable Applications: | Fan ventilation solution for EDAF1xxx series in EID cabinet. Should be used in combination with the cabinet's matching Fan adapter EDAI1xxx, in order to sustain a high ingress protection when installing a standard Fan unit EDAF1xxx |
| Environmental Space: | Indoor |
| Finish: | Powder Coated |
| Material: | Steel |
| EU CE Mark: | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| Included Parts: | Cover, Cover stand and screws |
| Packaging: | Individually packed |
| Item # | Color | Application |
|---|---|---|
| EDAI2002 | Black | E-Series Cabinets |
| EDAI2001 | Gray | E-Series Cabinets |
| Update and Revision: | Revision Number: 0.133 Revision Date: 08-05-2025 |
