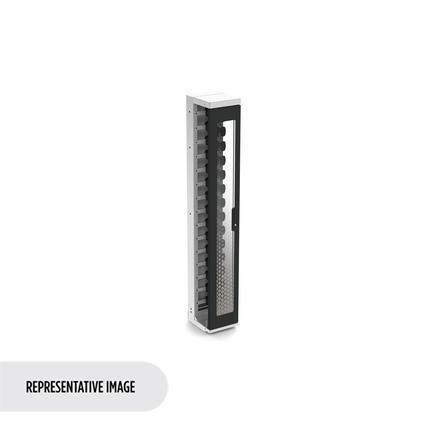

DCX Vertical In-cabinet Short Channel Patch Cord Storage Module, Rear Panel, 15 Spools, Black with Black Plexidoor
| Environmental Space: | Indoor |
| Suitable Applications: | Optical Distribution Frame, Data Centers, Central Equipment Room |
| Weight: | 74.380 lbs |
| Height: | 84 in |
| Width: | 12 in |
| Depth: | 15 in |
| Max Capacity: | Each Slack Spool holds a maximum of one to two bundles of Patch Cord fibers (refer to Max Capacity table) |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -10°C To +75°C |
| Description | Material |
|---|---|
| Patch Cord Slack Module Frame | Steel |
| Door | Steel/Plexiglass |
| Patch Cord Spools | PC/ABS |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Rear Panel, Patch Cord Slack Spools (15x), In-Cabinet Short Channel |
| Related Parts: | DCX Frame Module & Patch Panel |
| Notes: | For more information, refer to our web site at http://www.belden.com/dcx |
| Update and Revision: | Revision Number: 0.17 Revision Date: 04-08-2022 |
