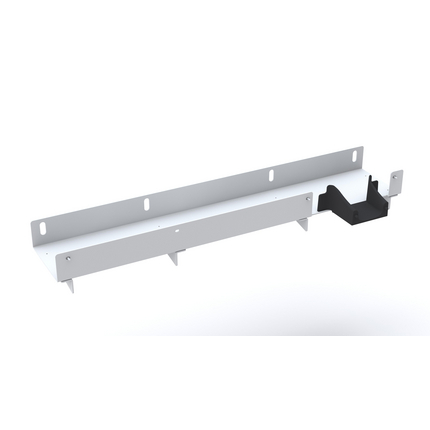

(109)DCX Horizontal Rear Channel Kit, Left-Right (4 Patch Cord Trays), Central Office White
| Environmental Space: | Indoor |
| Suitable Applications: | Optical Distribution Frame, Data Centers, Central Equipment Room |
| Weight: | 10.060 lbs |
| Height: | 5.560 in |
| Width: | 36.000 in |
| Depth: | 10.000 in |
| Max Capacity: | 4172 fibers (1.6mm cables), 2086 fibers (1.6mm DX/ZIP cables), 1335 fibers (2mm cables) |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -10°C To +75°C |
| Description | Material | Color |
|---|---|---|
| Horizontal Rear Channel LR | Steel | White |
| Frame Spool Rear through Management | PC/ABS | Black |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Hardware kit, see notes |
| Related Parts: | DCX Frame Module & Patch Panel |
| Item # | Color |
|---|---|
| DCX-HRRC-LR01W | White |
| Packaging: | The kit (4x) is packaged in a cardboard box |
| Notes: | Hardwar kit contains: Thread Cutting Screws 10-32 (2x), Quick Start Guides (2x). For more information, refer to Quick Start Guide PX106860 (English/French) or visit our web site at http://www.belden.com/dcx |
| Update and Revision: | Revision Number: 0.38 Revision Date: 03-27-2024 |
