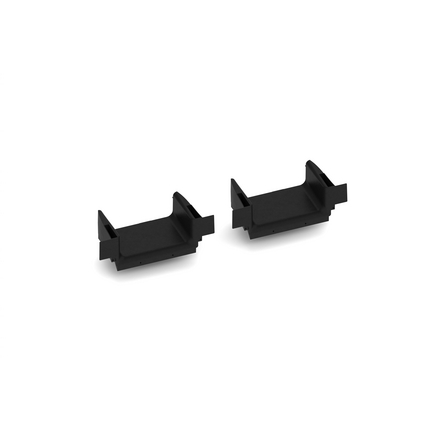

(4)DCX Horizontal In-cabinet Front-to-Back Patch Cord Bridge, Black
| Environmental Space: | Indoor |
| Suitable Applications: | Optical Distribution Frame, Data Centers, Central Equipment Room |
| Weight: | 0.700 lbs |
| Height: | 4.500 in |
| Width: | 11.250 in |
| Depth: | 10.000 in |
| Max Capacity: | 576 fibers (1.6mm cables), 289 fibers (1.6mm DX/ZIP cables), 179 fibers (2mm cables) |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -10°C To +75°C |
| Description | Material | Color |
|---|---|---|
| Horizontal In-cabinet Patch Cord Bridge Assembly | PC/ABS | Black |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Hardware kit, see notes |
| Related Parts: | DCX Frame Module & Patch Panel |
| Packaging: | Packaged in a cardboard box |
| Notes: | Hardware kit contains: Screw for plastic #6-19 (4x), Quick Start Guides (2x). For more information, refer to Quick Start Guide PX106861 (English/French) or visit our web site at http://www.belden.com/dcx |
| Update and Revision: | Revision Number: 0.26 Revision Date: 12-12-2022 |
