(109)Dragonfly Indoor, dual radio, 5 GHz 802.11ax 4x4:4 and 2.4 GHz 802.11ax 2x2:2, built-in antennas; integrated BLE/Zigbee, scanning and security function
| Type: | DAP640 |
| Name: | DAP640-RW |
| Part Number: | 942999304 |

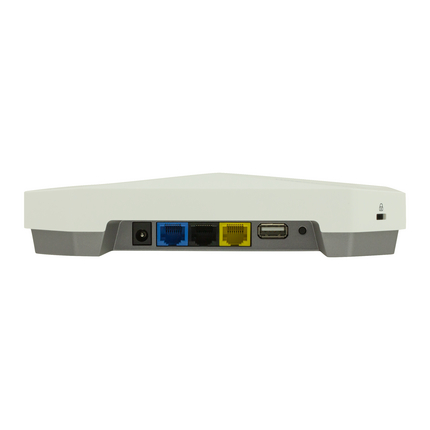

| Port type and quantity: | 1 × 10/100/1000/2500Mbps RJ45 port, Eth0, PoE PD (IEEE 802.3at); 1 × 10/100/1000Mbps RJ45 port, port, Eth1, PoE PD (IEEE 802.3at); 1 × RJ45 Console Port; 1 × USB 2.0 Type-C; 1 × Reset button; 1 × Kensington security slot |
| Radio protocol: | IEEE 802.11b; 802.11a/g/n/ac; 802.11ax; up to 2.975Gbps (2.402Gbps in 5GHz and 573Mbps in 2.4GHz) data rate; BLE5/Zigbee (802.15.4), scanning and security function |
| Antenna connector: | Built-in 2×2:2 @ 2.4GHz, 4x4:4 @ 5GHz, BLE antenna, Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.7dBi in 2.4GHz and 4.8dBi in 5GHz |
| Frequency band: | 2.400 to 2.4835 GHz; 5.150 to 5.250 GHz; 5.250 to 5.350 GHz; 5.470 to 5.725 GHz; 5.725 to 5.850 GHz *available channels: Dependent on configured regulatory domain |
| Modulation: | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| RF Optimization: | Receive sensitivity (per chain): 1Mb/s@2.4GHz=-99; 11Mb/s@2.4GHz=-90; 6Mb/s@2.4GHz=-93 & @5GHz=-93; 54Mb/s@2.4GH=-77 & @5GHz=-77; HT20 (MCS0/8)@2.4GHz=-93 & @5GHz=-93; HT20 (MCS7/15)@2.4GHz=-76 & @5GHz=-74; HT40 (MCS0/8)@2.4GHz=-91 & @5GHz=-90; HT40 (MCS7/15)@2.4GHz=-74 & @5GHz=-71; VHT20 (MCS0)@2.4GHz=-93 & @5GHz=-93; VHT20 (MCS8)@2.4GHz=-72 & @5GHz=-70; VHT40 (MCS0)@2.4GHz=-91 & @5GHz=-90; VHT40 (MCS9)@2.4GHz=-68 & @5GHz=-66; VHT80 (MCS0)@5GHz=-87; VHT80 (MCS9)@5GHz=-62; HE20 (MCS0)@2.4GHz=-94 & @5GHz=-93; HE20 (MCS11)@2.4GHz=-65 & @5GHz=-65; HE40 (MCS0)@2.4GHz=-91 & @5GHz=-91; HE40 (MCS11)@2.4GHz=-62 & @5GHz=-62; HE80 (MCS0)@5GHz=-88; HE80 (MCS11)@5GHz=-59 Maximum transmit power (per chain)*: 1Mb/s@2.4GHz=18 dBm; 11Mb/s@2.4GHz=18 dBm; 6Mb/s@2.4GHz=17 dBm & @5GHz=18 dBm; 54Mb/s@2.4GH=16 dBm & @5GHz=16 dBm; HT20 (MCS0/8)@2.4GHz=17 dBm & @5GHz=17 dBm; HT20 (MCS7/15)@2.4GHz=14 dBm & @5GHz=15 dBm; HT40 (MCS0/8)@2.4GHz=17 dBm & @5GHz=17 dBm; HT40 (MCS7/15)@2.4GHz=14 dBm & @5GHz=15 dBm; VHT20 (MCS0)@2.4GHz=17 dBm & @5GHz=17 dBm; VHT20 (MCS8)@2.4GHz=14 dBm & @5GHz=15 dBm; VHT40 (MCS0)@2.4GHz=17 dBm & @5GHz=17 dBm; VHT40 (MCS9)@2.4GHz=14 dBm & @5GHz=15 dBm; VHT80 (MCS0)@5GHz=17 dBm; VHT80 (MCS9)@5GHz=15 dBm; HE20 (MCS0)@2.4GHz=17 dBm & @5GHz=17 dBm; HE20 (MCS11)@2.4GHz=12 dBm & @5GHz=13 dBm; HE40 (MCS0)@2.4GHz=17 dBm & @5GHz=17 dBm; HE40 (MCS11)@2.4GHz=12 dBm & @5GHz=13 dBm; HE80 (MCS0)@5GHz=17 dBm; HE80 (MCS11)@5GHz=13 dBm *Note: Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory setting |
| Operating Voltage: | Supports direct DC power and Power over Ethernet (PoE PD) |
| Operating voltage DC: | Direct DC source: 48V DC nominal,± 5% |
| Power consumption: | 24.8 W |
| Authentication: | 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, WPA3 (WPA3-Personal WPA3 -Enterprise); 802.1X; Portal page authentication; Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) |
| Management: | Internal User Database, Zero-touch provisioning (ZTP), System log report, SNMP Trap Notification with DAC software, Floor plan and heat map with DAC software, Industrial HiVision |
| Security: | Captive Portal, Radius Client, Wireless QoS, Client sticky avoidance, User behavior tracking, White / black list, ACL, Rogue AP location and containment, Wireless Attack Detection |
| Software features: | Auto channel selection; Auto transmit power control; Bandwidth control per SSID; L2 roaming; L3 roaming with DAC software; Band steering; Client smart load balance; NTP server client; Wireless MESH P2P/P2MP |
| Operating temperature: | 0-50 °C |
| Storage/transport temperature: | -40°C to +70 °C |
| Relative humidity (non-condensing): | 5 - 95 % |
| Width: | 180 mm |
| Height: | 36 mm |
| Depth: | 180 mm |
| Weight: | 0.8 kg |
| Mounting: | Ceiling, wall |
| Protection class: | IP41 |
| Safety of industrial control equipment: | EN 62368-1 |
| FCC: | Yes |
| UL/cUL: | Yes |
| CE: | Yes |
| RoHS Compliant: | RoHS ((EU) 2015/863) and RoHS (GB/T26572-2011) compliant |
| Radio: | EN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz), EN 301 489-1, EN 301 489-17 |
| Accessories to Order Separately: | DC power adapter |
| Scope of delivery: | Installation guide, mounting kit (AP-MNT-IN-W) |
| Update and Revision: | Revision Number: 0.12 Revision Date: 05-14-2024 |
