(4)Dragonfly Indoor, dual radio, 5 GHz 802.11 ax 2x2:2 and 2.4 GHz 802.11 ax 2x2:2, built-in antennas
| Type: | DAP620 |
| Name: | DAP620-RW |
| Part Number: | 942999300 |

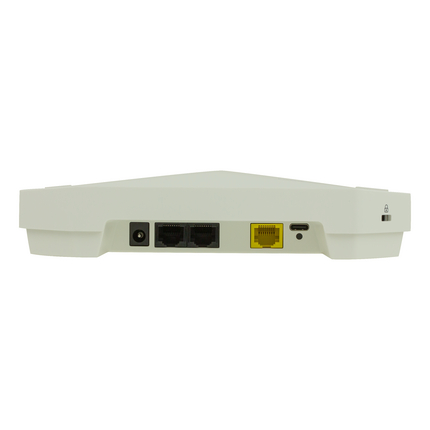

| Port type and quantity: | 2 × 10/100/1000 TX RJ45, PoE PD (IEEE 802.3af); 1 × RJ45 Console Port; 1 × USB 2.0 Type-C; 1 × Reset button; 1 × Kensington security slot |
| Radio protocol: | IEEE 802.11b; 802.11a/g/n/ac; 802.11ax; up to 1.77Gbps (1.2Gbps in 5GHz and 573.5Mbps in 2.4GHz) data rate |
| Antenna connector: | Built-in 2×2:2 @ 2.4GHz, 2x2:2 @ 5GHz, integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.3dBi in 2.4GHz and 3.3dBi in 5GHz |
| Frequency band: | 2.400 to 2.4835 GHz; 5.150 to 5.250 GHz; 5.250 to 5.350 GHz; 5.470 to 5.725 GHz; 5.725 to 5.850 GHz *available channels: Dependent on configured regulatory domain |
| Modulation: | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK,QPSK,CCK,16-QAM,64-QAM,256-QAM,1024-QAM |
| RF Optimization: | Receive sensitivity (per chain): 1Mb/s@2.4GHz=-97; 11Mb/s@2.4GHz=-90; 6Mb/s@2.4GHz=-93 & @5GHz=-93; 54Mb/s@2.4GH=-76 & @5GHz=-77; HT20 (MCS0/8)@2.4GHz=-93 & @5GHz=-93; HT20 (MCS7/15)@2.4GHz=-73 & @5GHz=-76; HT40 (MCS0/8)@2.4GHz=-91 & @5GHz=-91; HT40 (MCS7/15)@2.4GHz=-72 & @5GHz=-74; VHT20 (MCS0)@2.4GHz=-93 & @5GHz=-93; VHT20 (MCS8)@2.4GHz=-71 & @5GHz=-73; VHT40 (MCS0)@2.4GHz=-91 & @5GHz=-91; VHT40 (MCS9)@2.4GHz=-67 & @5GHz=-68; VHT80 (MCS0)@5GHz=-88; VHT80 (MCS9)@5GHz=-64; HE20 (MCS0)@2.4GHz=-93 & @5GHz=-93; HE20 (MCS11)@2.4GHz=-64 & @5GHz=-65; HE40 (MCS0)@2.4GHz=-90 & @5GHz=-91; HE40 (MCS11)@2.4GHz=-62 & @5GHz=-62; HE80 (MCS0)@5GHz=-88; HE80 (MCS11)@5GHz=-59 Maximum transmit power (per chain)*: 1Mb/s@2.4GHz=18 dBm; 11Mb/s@2.4GHz=18 dBm; 6Mb/s@2.4GHz=18 dBm & @5GHz=18 dBm; 54Mb/s@2.4GH=16 dBm & @5GHz=16 dBm; HT20 (MCS0/8)@2.4GHz=18 dBm & @5GHz=18 dBm; HT20 (MCS7/15)@2.4GHz=15 dBm & @5GHz=15 dBm; HT40 (MCS0/8)@2.4GHz=18 dBm & @5GHz=18 dBm; HT40 (MCS7/15)@2.4GHz=15 dBm & @5GHz=15 dBm; VHT20 (MCS0)@2.4GHz=18 dBm & @5GHz=18 dBm; VHT20 (MCS8)@2.4GHz=14 dBm & @5GHz=15 dBm; VHT40 (MCS0)@2.4GHz=18 dBm & @5GHz=18 dBm; VHT40 (MCS9)@2.4GHz=14 dBm & @5GHz=15 dBm; VHT80 (MCS0)@5GHz=18 dBm; VHT80 (MCS9)@5GHz=14 dBm; HE20 (MCS0)@2.4GHz=18 dBm & @5GHz=18 dBm; HE20 (MCS11)@2.4GHz=14 dBm & @5GHz=15 dBm; HE40 (MCS0)@2.4GHz=18 dBm & @5GHz=18 dBm; HE40 (MCS11)@2.4GHz=14 dBm & @5GHz=15 dBm; HE80 (MCS0)@5GHz=18 dBm; HE80 (MCS11)@5GHz=14 dBm *Note: Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory setting |
| Operating Voltage: | Supports direct DC power and Power over Ethernet (PoE PD) |
| Operating voltage DC: | Direct DC source: 48V DC nominal,± 5% |
| Power consumption: | 13.1 W |
| Authentication: | 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, WPA3 (WPA3-Personal WPA3 -Enterprise); 802.1X; Portal page authentication; Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) |
| Management: | Internal User Database, Zero-touch provisioning (ZTP), System log report, SNMP Trap Notification with DAC software, Floor plan and heat map with DAC software, Industrial HiVision |
| Security: | Captive Portal, Radius Client, Wireless QoS, Client sticky avoidance, User behavior tracking, White / black list, ACL, Rogue AP location and containment, Wireless Attack Detection |
| Software features: | Auto channel selection; Auto transmit power control; Bandwidth control per SSID; L2 roaming; L3 roaming with DAC software; Band steering; Client smart load balance; NTP server client; Wireless MESH P2P/P2MP |
| Operating temperature: | 0-45 °C |
| Storage/transport temperature: | -40°C to +70 °C |
| Relative humidity (non-condensing): | 5 - 95 % |
| Width: | 180 mm |
| Height: | 36 mm |
| Depth: | 180 mm |
| Weight: | 0.6 kg |
| Mounting: | Ceiling, wall |
| Protection class: | IP41 |
| Safety of industrial control equipment: | EN 62368-1 |
| FCC: | Yes |
| UL/cUL: | Yes |
| CE: | Yes |
| RoHS Compliant: | RoHS ((EU) 2015/863) and RoHS (GB/T26572-2011) compliant |
| Radio: | EN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz), EN 301 489-1, EN 301 489-17 |
| Accessories to Order Separately: | DC power adapter |
| Scope of delivery: | Installation guide, mounting kit (AP-MNT-IN-W) |
| Update and Revision: | Revision Number: 0.12 Revision Date: 05-14-2024 |
