(4)Consolidation/MDU Enclosures Brackets
| Environmental Space: | Indoor |
| Construction: | Steel |
| Finish: | White Powdercoat Finish |
| Material: | Steel |
| Color: | White |
| Part # | Description |
|---|---|
| XRES-SPACER | Consolidation Enclosure Spacer/Separator Panel |

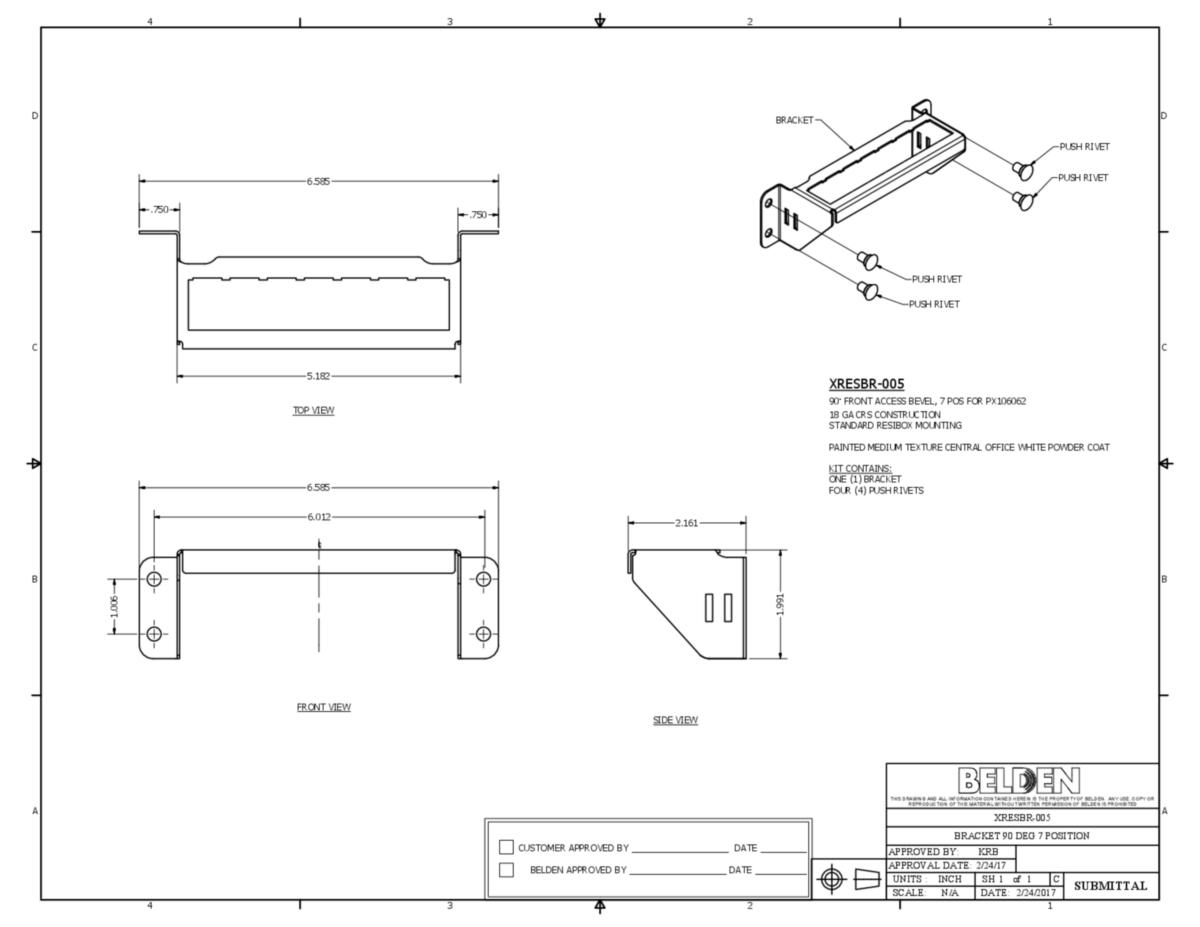

| XRESBR-005 | Consolidation Enclosure 90 Degree Front Access Bracket, 7 Position |

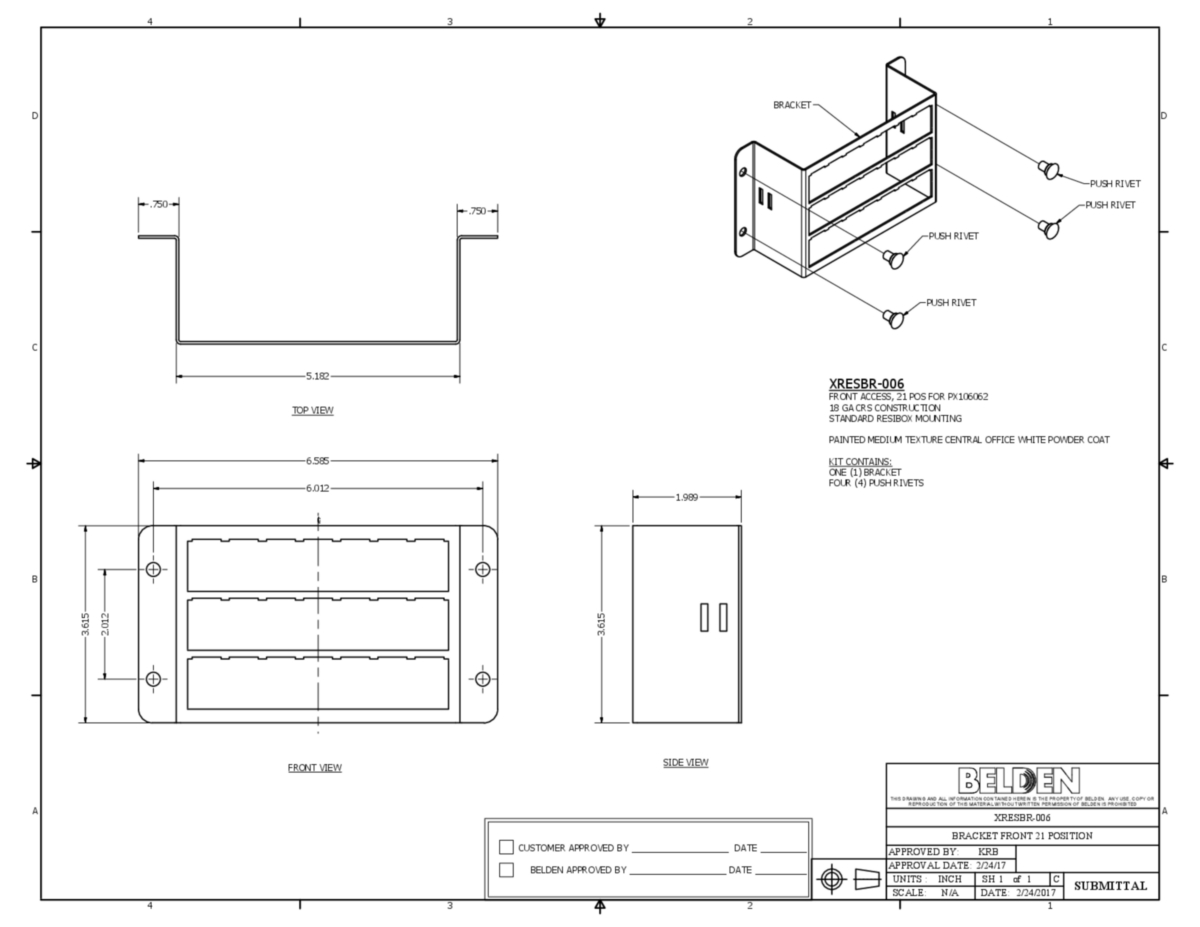

| XRESBR-006 | Consolidation Enclosure Front Access 21 Position |

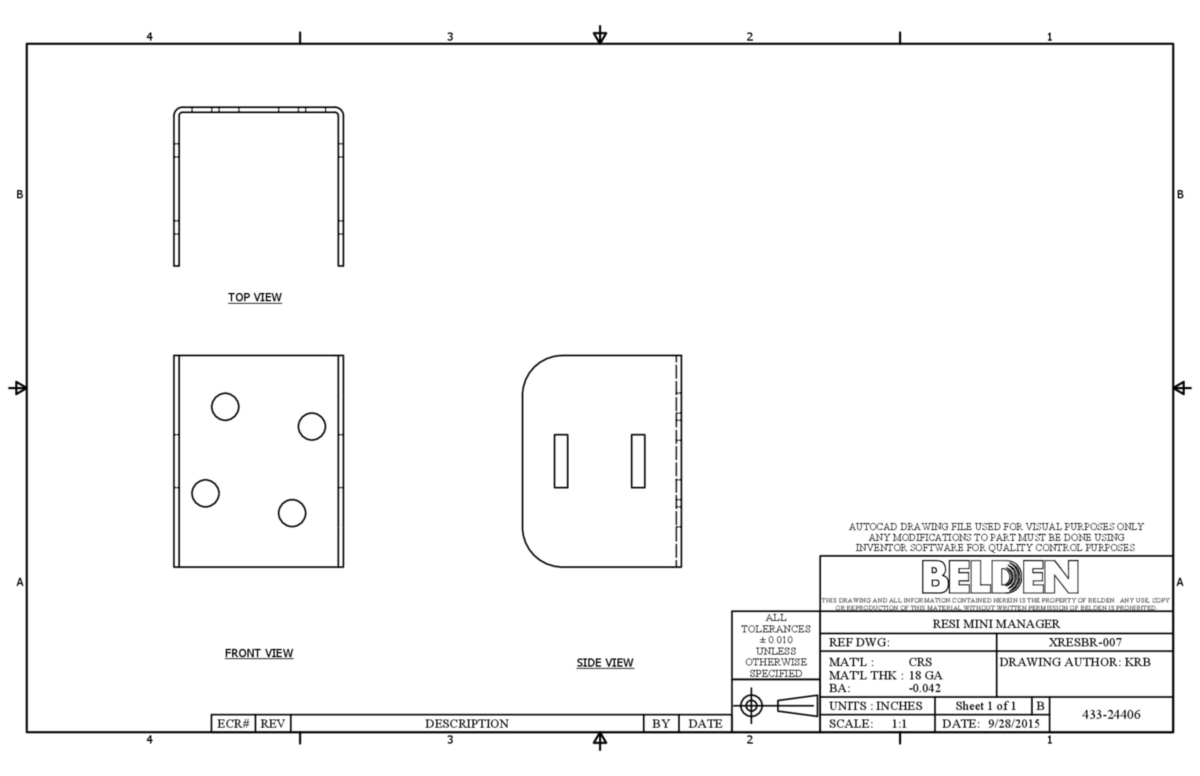

| XRESBR-007 | Consolidation Enclosure Resi Mini Manager |

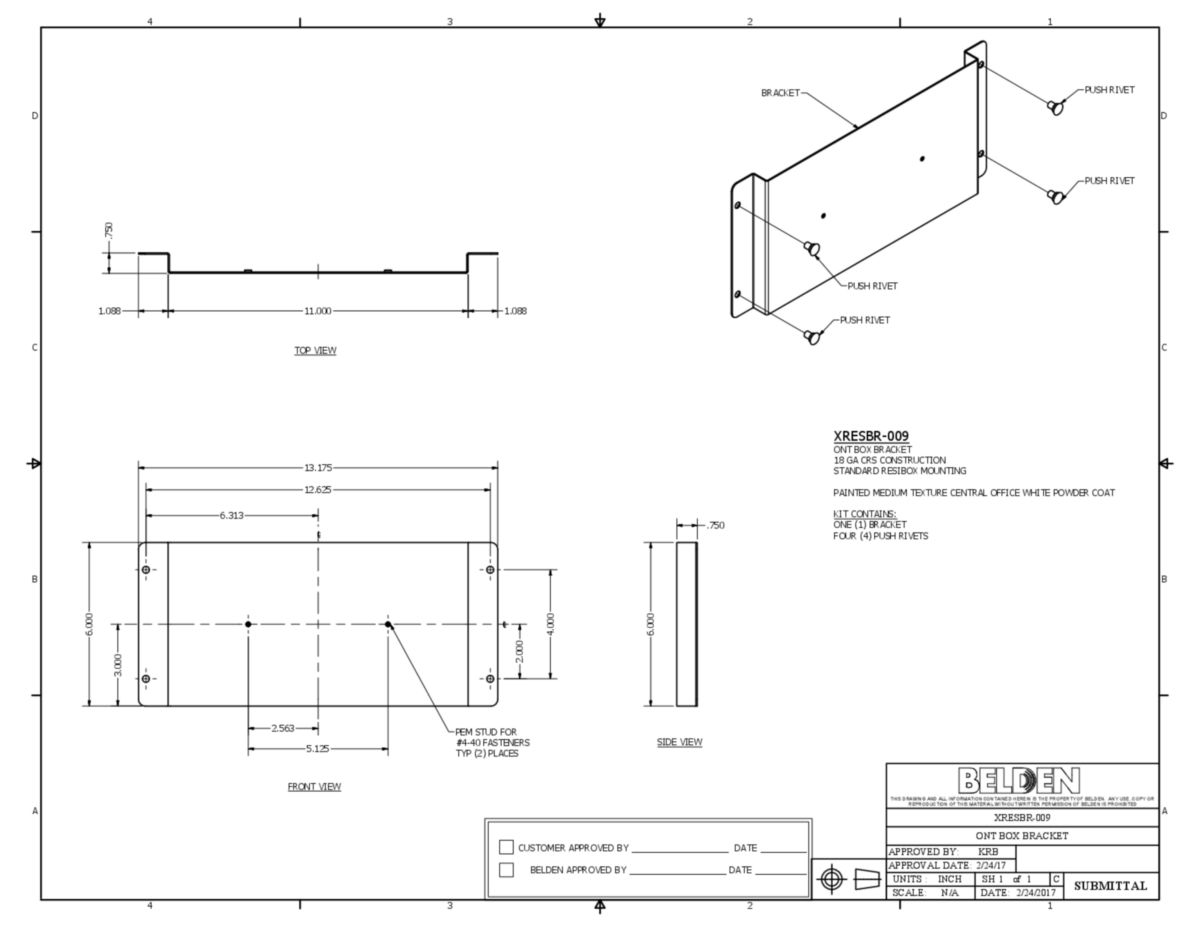

| XRESBR-009 | Consolidation Enclosure PON Box Bracket |

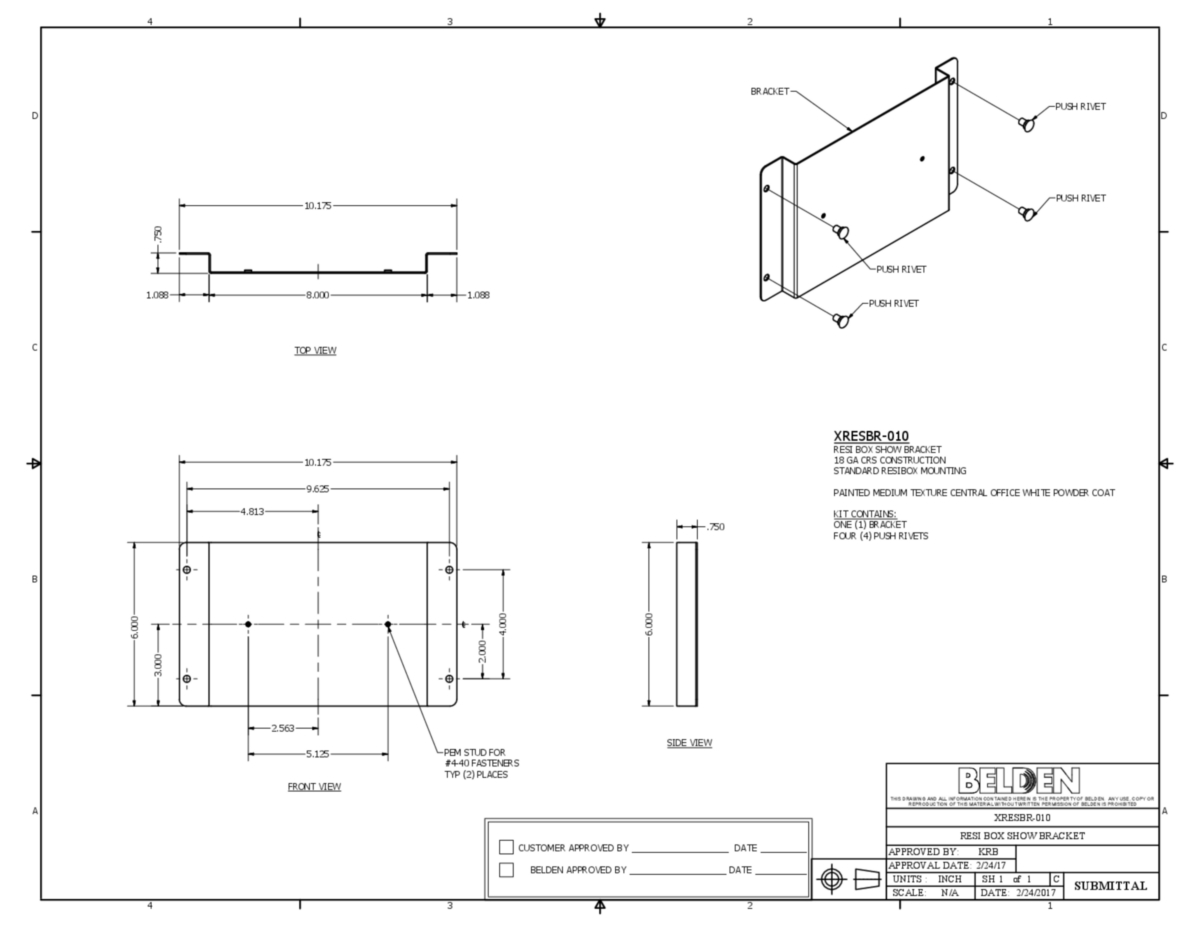

| XRESBR-010 | Consolidation Enclosure PON Box Bracket |
| Update and Revision: | Revision Number: 0.56 Revision Date: 02-03-2025 |
