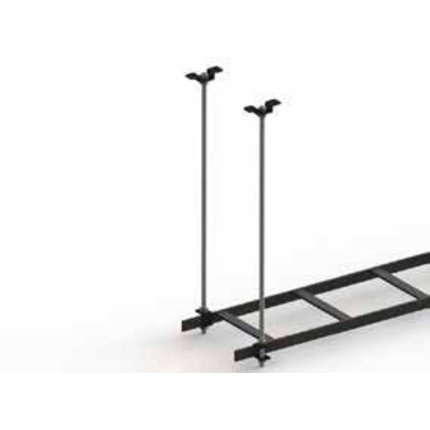

(4)| Product Overview: | The Ceiling Attachment Kit is used to suspend the runway from the ceiling. |
| Benefits: | The Ceiling Attachment Kit is used to suspend the runway from the ceiling. |
| Features: | Note: The recommended spacing between the ceiling attachment kit is 5'. The ceiling hold diameter is .375" for .375" rod kit and .500" for .625" rod kit |
| Environmental Space: | Indoor |
| Finish: | Black Powdercoat Finish |
| Material: | Steel |
| Color: | Black |
| Included Parts: | Kit consists of: (1) Ceiling bracket, black powdercoat finish, (1) 3/8"-16 x 6' or 5/8"-16 x 6' Rod in Gold Zinc, (1) Support bracket, black powdercoat finish is compatible with all Belden cable runway, (4) 3/8"-16 or 5/8"-11 hex nuts |
| Packaging: | Individually Boxed |
| Part # | Description | Color | Included Parts | Shipping Weight |
|---|---|---|---|---|
| BLTCK310-38 | Ceiling Attachment Kit, 3/8" Rod | Black | Kit consists of: (1) Ceiling bracket, black powdercoat finish, (1) 3/8"-16 x 6' or 5/8"-16 x 6' Rod in Gold Zinc, (1) Support bracket, black powdercoat finish is compatible with all Belden cable runway, (4) 3/8"-16 or 5/8"-11 hex nuts | 3.0 lb |
| BLTCK310-58 | Ceiling Attachment Kit, 5/8" Rod | Black | Kit consists of: (1) Ceiling bracket, black powdercoat finish, (1) 3/8"-16 x 6' or 5/8"-16 x 6' Rod in Gold Zinc, (1) Support bracket, black powdercoat finish is compatible with all Belden cable runway, (4) 3/8"-16 or 5/8"-11 hex nuts | 7.0 lb |
| Update and Revision: | Revision Number: 0.148 Revision Date: 11-09-2022 |
