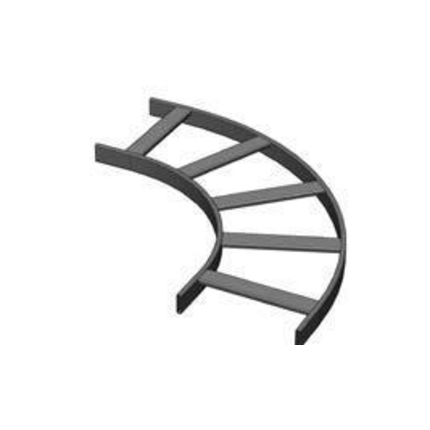

(4)Cable Runway E-Bend - UL Classified, creates a 90° gradual sweep in horizontal plane for cable runway runs
| Product Overview: | Creates a 90° gradual sweep in horizontal plane for cable runway runs. Designed for cabling in conformance with minimum bend radius requirements (typically four times the cable diameter). Made of lightweight 1.5" x .736" tubular steel to fit standard cable runway. |
| Benefits: | Also available in White with extended lead times of 6-8 weeks ARO |
| Features: | Cross members welded at approximately 23° increments. Compatible with all Belden Cable Runway. Conforms to Category 5e/6/6A requirements. |
| Environmental Space: | Indoor |
| Finish: | Black Powdercoat Finish |
| Material: | Lightweight Steel |
| Color: | Black |
| Packaging: | Individually Boxed |
| Part # | Description | Color | Lead time | Shipping Weight |
|---|---|---|---|---|
| BLEB822-12B | Cable Runway E-Bend - UL Classified, creates a 90° gradual sweep in horizontal plane for 12"W cable runway runs | Black | Black lead time (14 day ARO) | 12 lb |
| BLEB822-18B | Cable Runway E-Bend - UL Classified, creates a 90° gradual sweep in horizontal plane for 18"W cable runway runs | Black | Black lead time (14 day ARO) | 19 lb |
| BLEB822-24B | Cable Runway E-Bend - UL Classified, creates a 90° gradual sweep in horizontal plane for 24"W cable runway runs | Black | Black lead time (14 day ARO) | 27 lb |
| BLEB822-12W | Cable Runway E-Bend - UL Classified, creates a 90° gradual sweep in horizontal plane for 12"W cable runway runs | White | White extended lead time will be (6-8 weeks ARO) | 12 lb |
| BLEB822-18W | Cable Runway E-Bend - UL Classified, creates a 90° gradual sweep in horizontal plane for 18"W cable runway runs | White | White extended lead time will be (6-8 weeks ARO) | 19 lb |
| BLEB822-24W | Cable Runway E-Bend - UL Classified, creates a 90° gradual sweep in horizontal plane for 24"W cable runway runs | White | White extended lead time will be (6-8 weeks ARO) | 27 lb |
| Update and Revision: | Revision Number: 0.148 Revision Date: 11-14-2022 |
