CAT5e DataConnect Panel 48P - CAT5e DataConnect Patch Panel, 48 Port

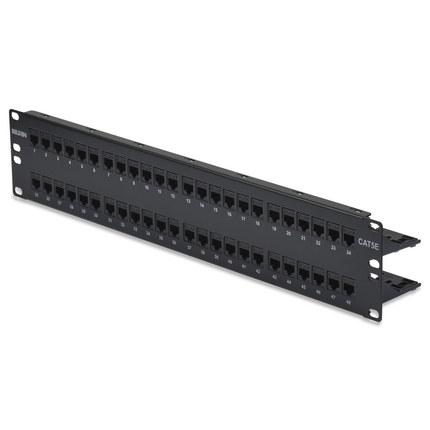

CAT5e DataConnect Patch Panel, Flat, 48-Port, 2U (Preloaded)

Product Overview

Suitable Applications: Ethernet 10/ 100/ 1GBase-T, 2.5GBase-T

Physical Characteristics (Overall)

Height: 2.96 in
Width: 19.000 in
Depth: 2.960 in
Port Count: 48 Port
Front Connection: Flush
Packaging: Individually packaged in a cardboard box.
Weight: 3.400 lbs

Connectors

Materials
DescriptionMaterialColor
PanelSteelBlack
Management BarSteel/PlasticBlack

Construction and Dimensions

Max Capacity: 48 connectors (preloaded)

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute (Signals to Ground)
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Termination Resistance: 2.5 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Footprint/Type: DataConnect
Tool Compatibility: Belden 110 Connecting Tool, MediaFlex Termination Station, Belden Rapid TerminationTool (RTT)
Plug /Jack Compatibility: RJ45
Cable/Connector Retention: 11.25 lbs
Connector/Hardware Retention: 20 lbs
Plug/Connector Retention: 11.250 lbs

Standards

UL Rating: UL94V-0
ISO/IEC Compliance: IEC 60603-7
Data Category: Category 5e
Telecommunications Standards: Category 5e - TIA 568.2-D, ISO/IEC 11801-1
IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBase TTM (up to 100W)
Other Standards: UL 1863, ANSI/TIA 1096-A (formely FCC Part 68-F)

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU Directive 2011/65/EU (ROHS II): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: DataConnect CAT5e Modular Cords

Product Notes

Included Parts: 8 Screws (12x24); 2 Printable Label Half-Sheets; 4 Velcro Straps; 2 Rear Cable Support Bars; 1 Installation Guide; 48 Protective Caps
Notes: For proper installation refer to Installation Guide PX106898 included with the product

History

Update and Revision: Revision Number: 0.15 Revision Date: 04-13-2020
