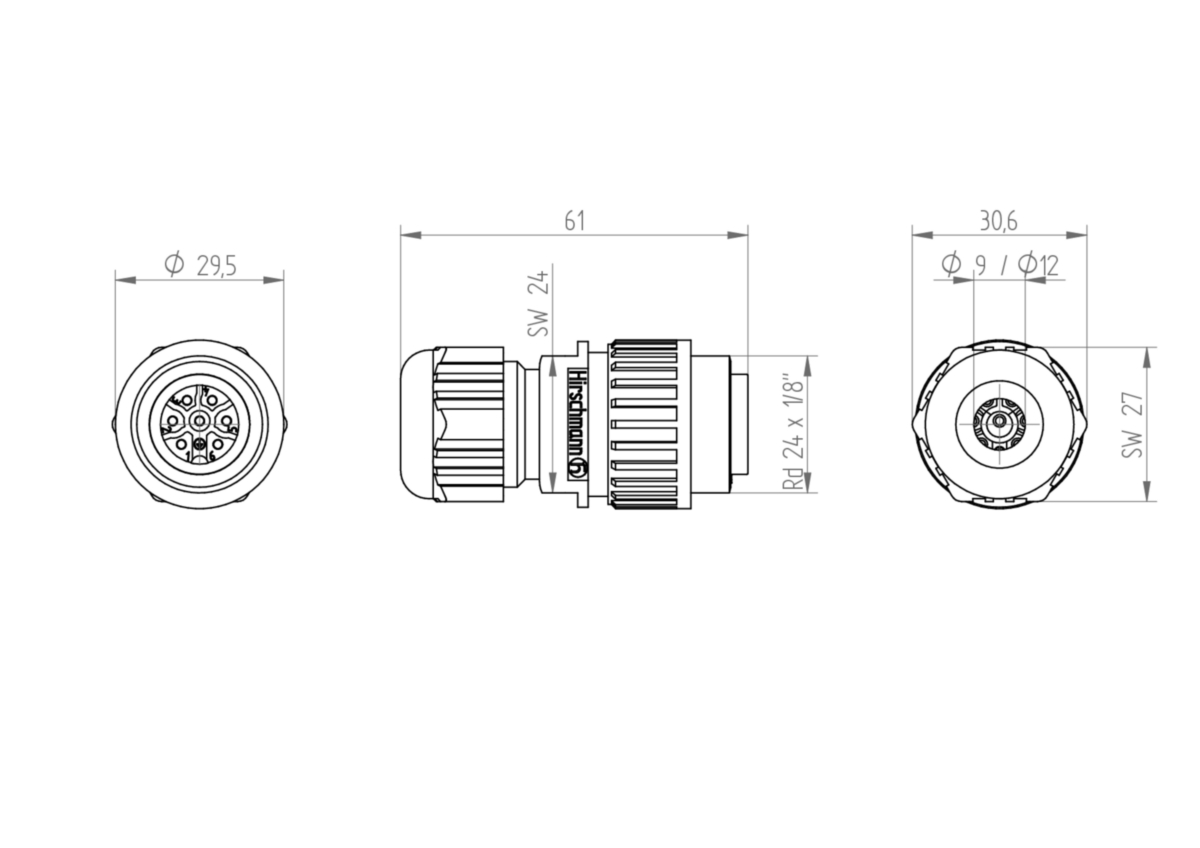

CA 6 LS - Circular Field Attachable Power Connector (CA Series): Male, straight, 7-pin(6+PE), integrated strain relief, 230 V AC/DC, 10 A




Circular Field Attachable Power Connector (CA Series): Male, straight, 7-pin(6+PE), integrated strain relief, 230 V AC/DC, 10 A

Technical Data

Product Family: Power Connector
Product Sub Family: CA-Series
Brand: Hirschmann
Connector Type: Field Attachable
Type of Contact / Gender: male
Connector Design: straight
Number of Pins: 7(6+PE)
Shielding: Unshielded
Attachment Type: Coupling Screw
Rated Voltage: 250V AC/DC
Rated Impulse Voltage: 4.0 kV
Operating Voltage: 230 V AC/DC
Rated Current*: 10 A (0.75 mm²)
Contact Resistance: ≤ 10 mOhm
Type of Connection: solder
Cable Gland: TR22
Conductor Cross Section: max. 0.75 mm²
Strain-Relief: clamping cage
Suitable Cables: Ø6 mm to Ø12 mm, Gasket Ø9 mm for cables with Ø6 - 9 mm, Gasket Ø12 mm for cables with Ø9 - 12 mm
Ambient Temperature (Operation)*: -40°C to +90°C, notice derating
Temperature Range (Gasket): -40°C to +90°C
Protection Degree / IP Rating**: IP66, IP67
Design Standard: DIN EN 61984 (VDE 0627)
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance: DIN EN 60664-1 (2008/01); VDE 0110-1

Materials

Contact Base Material: CuZn
Contact Plating: Cu/Ag
Contact Bearer Material: PA 66 GF
Contact Bearer Color: black
Flammability Class (Contact Bearer): UL 94 V-0
Attachment Material: PA 66 GF
Flammability Class (Attachment): UL 94 V-0
Gasket Material: NBR

Additional Technical Data

Fastening Torque (Cable Gland): TR22: min. 250 Ncm
Mating Connectors / Fitting to: 934-127-100 CA 6 LD (field attachable, straight), 934-131-100 CA 6 W LD (field attachable, angled), 932-325-100 CA 6 GD (receptacle, straight)
Accessories to Order Separately: CA00 SD 1: 831-530-400, cap

Approvals

UL-File: E95522, Series CA 3
VDE: VDE-Reg.-Nr. 2745

Notes

Note Derating: * Notice derating
Protection Degree / IP Rating Note: ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note: Do not connect or disconnect under load.
Variants
Item #Item DescriptionHousing ColorHousing MaterialCable Gland Material
934126100CA 6 LSblackPA 66PA 66
