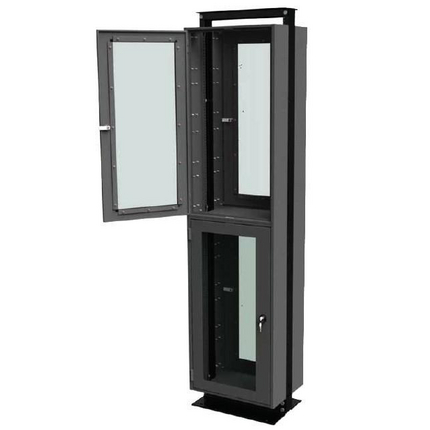

BSP-44U Secure Patch - Belden SecurePatch Open Rack Security Door


SecurePatch Open Rack Security Door

Application

Product Overview: SecurePatch provides security for new and existing network components in an open 19" equipment rack. The SecurePatch cover provides a security solution to only the section of the rack space you need. Safeguard against unauthorized patch cord movement by retrofitting loaded equipment racks with the added security of a lockable door.
Benefits: Adds security without network downtime
Controls rack access
Provides second-level lock security
Clamshell design allow back to back mounting of SecurePatch for securing front and rear
No need to re-terminate
Mounting flange allows one person to install each unit
Features: Can be rack or Wall-Mounted on a backboard
Slotted mounting flange allows for single person install
Multiple side knockout options allow for low-high-capacity cable feed through
Connecting bracket enables 11U/22U units to be connected in any combination while allowing patch cord pass through from one unit to another
Product Specification: 16 gauge cold rolled steel 19" Rack-Mounting per EIA-310-D Finish black powdercoat Door option: steel, mesh or plexiglass Keyed locks standard on door Combination locks available (sold separately as BSP-LOCK-C1) Ships unassembled Easy to follow assembly instructions
Environmental Space: Indoor

Mechanical Characteristics

Mounting: Rack Mount 19” Horizontal

Part Number

Packaging: Packaged in a cardboard box
Variants
Part #HeightDepthDoor Type
BSP-44U-6MK77.0 in6.0 inMesh Door
BSP-44U-6PK77.0 in6.0 inPlexiglas Door
BSP-44U-6SK77.0 in6.0 inSolid Steel Door
BSP-D44U-6MK77.0 in6.0 inMesh Door
BSP-D44U-6PK77.0 in6.0 inPlexiglas Door
BSP-D44U-6SK77.0 in6.0 inSolid Steel Door
Update and Revision: Revision Number: 0.31 Revision Date: 04-16-2020
