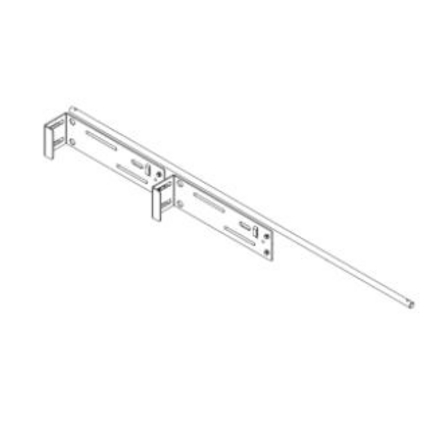

(4)Long Bracket/Bar Kit for KeyConnect Patch Panel
| Suitable Applications: | The long bracket and bar kit is used for AX106504-AP & AX106505-AP to streamline cable routing on a KeyConnect style patch panel |
| Material | Color |
|---|---|
| Steel | Black |
| Notes: | Surface: Low gloss textured black finish, Maximum static load rated 10kg |
| Update and Revision: | Revision Number: 0.26 Revision Date: 07-16-2025 |
