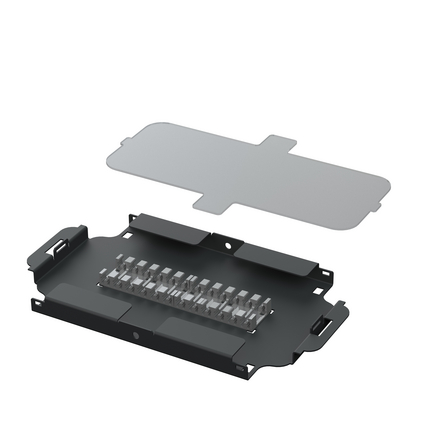

(4)FiberExpress Ultra Splice Tray 8 inches
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 0.700 lbs |
| Height: | 0.550 in |
| Width: | 4.50 in |
| Length: | 8.0 in |
| Max Capacity: | 24 F |
| Termination Type: | Front Sliding Drawer |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material | Color |
|---|---|---|
| Splice Tray | Aluminum | Black |
| Splice Holder | Polypropylene | Gray |
| Cover | Plastic | Clear |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | 1 x Splice Tray with Adhesive Holder, 1x Splice Tray Cover |
| Packaging: | Individually packaged in a plastic bag. |
| Notes: | For more information, please refer to our web site at http://www.belden.com. |
| Update and Revision: | Revision Number: 0.227 Revision Date: 03-06-2025 |
