9451WB - Audio Cable, 1 Pair 22 AWG, TC, Shielded, Waterblocked

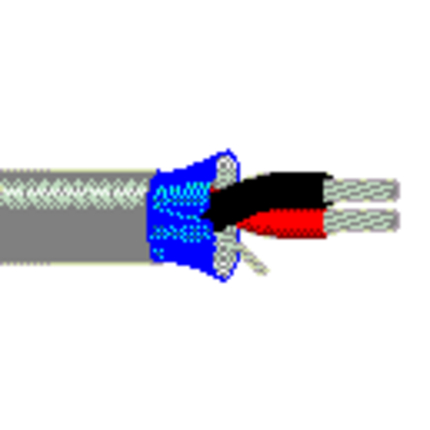

Audio Cable, 1 Pair 22 AWG stranded (7x30) TC conductors, polypropylene insulation, overall Beldfoil® shield (100% coverage), 22 AWG stranded TC drain wire, waterblock tape, polyethylene jacket.

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
227x30TC - Tinned Copper0.0285 in1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
MaterialNominal DiameterNominal Wall Thickness
PP - Polypropylene0.046 in0.0085 in
Color Chart
NumberColor
1Black & Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire DiameterDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper0.030 in227x30
Table Notes: Outer Shield Waterblocking Tape
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PE - Polyethylene0.165 in0.020 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Outer Shield DCR
14.1 Ohm/1000ft14.1 Ohm/1000ft10.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
35 pF/ft67 pF/ft
Delay
Nominal Delay
1.5 ns/ft
Current
Max. Recommended Current [A]
2.9 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -40°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 11 lbs/1000ft
Max. Pull Tension: 27 lbs
Min Bend Radius/Minor Axis: 1.75 in

Applicable Environmental and Other Programs

Environmental Space: Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2011-12-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Burial: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
9451WB 010U1000BlackUnReel1,000 ft612825253198

Product Notes

Notes: The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.

History

Update and Revision: Revision Number: 0.278 Revision Date: 09-30-2020
Date: 2011-12-01
