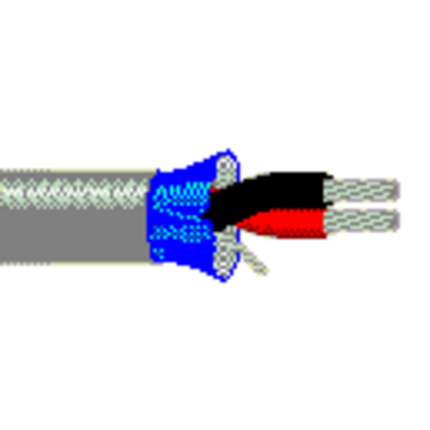

9451PS6 - Audio Snake Cable, 6 Pair 22 AWG, TC, Indiv. Shielded, CMP


Audio Snake Cable, 6 Pair 22 AWG tinned copper pairs, FEP insulation, drain, individually shielded with Beldfoil® bonded to numbered PVC jackets so both strip simulteaneously, Plenum Flamarrest® jackets, Banana Peel construction

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
227x30TC - Tinned Copper0.0285 in6
Conductor Count: 12
Total Number of Pairs: 6
Insulation
MaterialNominal DiameterNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.0425 in0.007 in
Color Chart
NumberColor
1Black & Red
Inner Jacket Material
MaterialNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)0.127 in
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire DiameterDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper0.019 in227x30
Outer Jacket Material
MaterialMaterial Trade NameNominal Diameter
No Jacket (Banana Peel)Flamarrest®0.381 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Outer Shield DCR
14.1 Ohm/1000ft14.1 Ohm/1000ft14.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
35 pF/ft67 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Delay
Nominal DelayNominal Velocity of Propagation (VP) [%]
1.47 ns/ft69 %
Current
Max. Recommended Current [A]
2.9 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 60°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 88 lbs/1000ft
Max Recommended Pulling Tension: 162 lbs
Min Bend Radius/Minor Axis: 4 in

Standards

NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2011-07-20
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorPutup TypeLengthUPC
9451PS6 010500BlackReel500 ft612825253150
9451PS6 0101000BlackReel1,000 ft612825253143
9451PS6 008500GrayReel500 ft612825253136
9451PS6 0081000GrayReel1,000 ft612825253129

Product Notes

Notes: The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.

History

Update and Revision: Revision Number: 0.281 Revision Date: 04-28-2020
Date: 2011-07-20
