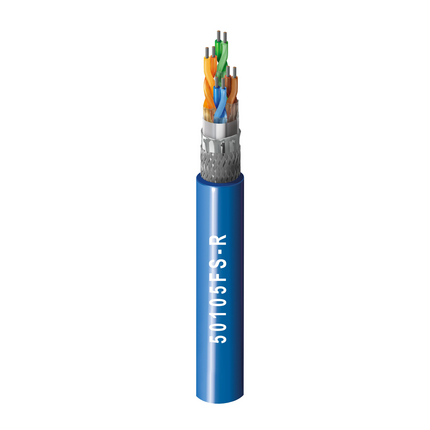

(4)High flex industrial Ethernet cable CAT5e,SF/UTP, 4x2x26AWG, Stranded Tinned-Copper Alloy, FEP insulation, Double shielding (Al/Mylar foil tape and tinned tinsel wire braid shield), FRPVC Jacket
| Suitable Applications: | BELDEN 50105FS-R 4x2xAWG26 is Category 5e high speed data transmission cable suitable for continuous flex applications and other moving machinery parts. Double shielding (Al/Mylar foil tape and tinned tinsel wire braid shield) provides excellent immunity from electromagnetic interference (EMI) and radio frequency interference (RFI). It is suitable for internal wiring and external interconnection of network devices (class2 circuits only) and meet UL VW-1-Vertical Wire flame test & UL 444 (CM) flame ratings. |
| Size | Stranding | Material |
|---|---|---|
| 26 AWG | Stranded | TCA - Tinned Copper Alloy |
| Material | Color Code |
|---|---|
| FEP - Fluorinated Ethylene Propylene | Blue & Light Blue, Orange & Light Orange, Green & Light Green, Brown & Light Brown |
| Shield Type |
|---|
| Tape |
| Braid |
| Material |
|---|
| PVC - Polyvinyl Chloride |
| Overall Cable Diameter (Nominal): | 6.9 mm (0.27 in) |
| Max. Mutual Capacitance |
|---|
| 56 pF/m (17 pF/ft) |
| Max. Delay Skew |
|---|
| 45 ns/100m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 1 | 3.1 | 65.3 | 62.3 | 63.8 | 60.8 | 20.0 |
| 4 | 6.1 | 56.3 | 53.3 | 51.7 | 48.7 | 23 |
| 8 | 8.6 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
| 10 | 9.7 | 50.3 | 47.3 | 43.8 | 40.8 | 25 |
| 16 | 12.4 | 47.2 | 44.2 | 39.7 | 36.7 | 25 |
| 20 | 13.9 | 45.8 | 42.8 | 37.8 | 34.8 | 25 |
| 25 | 15.6 | 44.3 | 41.3 | 35.8 | 32.8 | 24.2 |
| 31.25 | 17.6 | 42.9 | 39.9 | 33.9 | 30.9 | 23.3 |
| 62.5 | 25.5 | 38.4 | 35.4 | 27.9 | 24.9 | 20.7 |
| 100 | 33 | 35.3 | 32.3 | 23.8 | 20.8 | 19 |
| UL Temperature |
|---|
| -20°C to +80°C |
| Environmental Suitability: | Indoor, Outdoor |
| Flammability / Reaction to Fire: | UL1581 VW-1 Compliant, UL444 CM Compliant |
| TIA/EIA Compliance: | ANSI /EIA-568.2-D（Category.5e） |
| Notes: | Characteristic impedance: 85-115Ω (@100MHz), Capacitance unbalance: pair to ground 330 pF/100m Max.（1kHz), DC Resistance unbalance(Pair): 5.0 % Max. Double Screen: Al-PET foil and Tinned Tinsel braid, Trailing chain test: 20 million(R=38mm) ※, Torsion test: 20 million(±180°, L=300mm) ※, Reverse Bending Test: 20 million(R=40mm) ※ 20 million(R=40mm) ※ |
| Update and Revision: | Revision Number: 0.21 Revision Date: 03-17-2025 |
