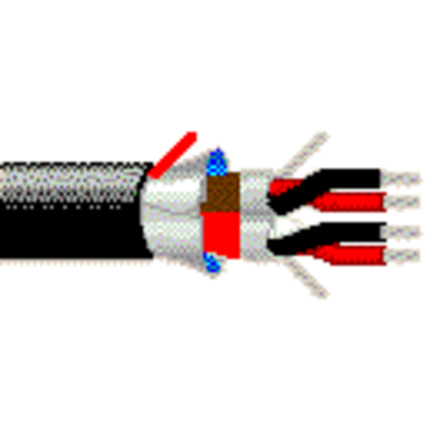

1814WB - Audio Snake Cable, #22-2pr, TC, Indiv. Shielded, Waterblocked

1814WB-Audio Snake Cable, #22-2pr,

Audio Snake Cable, 2-22 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, waterblocking tape, HDPE jacket

Product Overview

Environmental Space: Indoor/Outdoor
Suitable Applications: Outdoor Applications, Sports Stadium

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
227x30TC - Tinned Copper0.03 in2
Total Number of Conductors: 4
Total Number of Pairs: 2
Conductor Size: 22 AWG
Insulation
MaterialNominal DiameterNominal Wall Thickness
PO - Polyolefin0.05 in0.01 in
Color Chart
NumberColor
1Brown
2Red
1-1Red
1-2Black
2-1Red
2-2Black
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire DiameterDrainwire AWGDrainwire Construction n x D
TapeAluminum Foil-Polyester TapeBeldfoil®100 %TC - Tinned Copper0.030 in227x30
Inner Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.133 in0.015 in
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire DiameterDrainwire AWGDrainwire Construction n x D
Tape1Aluminum/PolyesterBeldfoil®100 %TC - Tinned Copper0.030 in227x30
Waterblocking Tape2100 %
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
HDPE - High Density Polyethylene0.362 in0.030 inYes
0.362 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRNominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Outer Shield DCR
14.1 Ohm/1000ft14.8 Ohm/1000ft14.8 Ohm/1000ft11.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
31 pF/ft56 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
50 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66 %
Current
Max. Recommended Current [A]
1.45 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 52 lbs/1000ft
Max Recommended Pulling Tension: 64 lbs
Min Bend Radius/Minor Axis: 3.75 in

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2011-10-03
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Aerial: Yes
Suitability - Burial: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

UL Voltage Rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6541PA

Part Number

Variants
Item #ColorFootnote
1814WB 0101000Black
1814WB 010500BlackC
Footnote: C - CRATE REEL PUT-UP.
Date: 2011-10-03
