(109)| Suitable Applications: | Mini RG59 tri shield coaxial cable used where space is limited; Coaxial cable used in cable broadBand communication networks designed according European Standard EN 50117-1; Operating frequencies between 5 and 3000 MHz |
| AWG | Stranding | Material | Nominal Diameter | Diameter +/- Tolerance | No. of Coax |
|---|---|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 0.58 mm | 0.02 mm | 5 |
| Conductor Count: | 5 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Dielectric | PE - Polyethylene (Foam) | 2.59 mm | 0.15 mm |
| Number | Color |
|---|---|
| 1 | Red |
| 2 | Green |
| 3 | Blue |
| 4 | White |
| 5 | Yellow |
| Type | Layer | Material | Coverage [%] | Min. Overlap | Coverage +/- Tolerance |
|---|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | 2 mm | ||
| Braid | 2 | Tinned Copper (TC) | 95% | 5% |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PVC - Polyvinyl Chloride | 4 mm | 0.23 mm |
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 13.7 mm |
| Description | Filler |
|---|---|

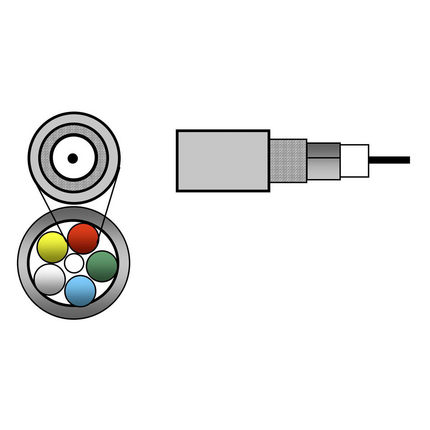

| 5 coax bundled around a filler covered with nonwoven foil | Polypropylene (1x) |
| Min Elongation at Breakof Jacket: | 150 % |
| Min Tensile Strength of Jacket: | 12.5 MPa |
| Max. Conductor DCR | Max. Conductor Loop | Max. Shield DCR |
|---|---|---|
| 66 Ohm/km | 83 Ohm/1000ft | 17 Ohm/km |
| Nom. Capacitance | Capacitance Tolerance |
|---|---|
| 53 pF/m | 2 pF/m |
| Min Insulation Resistance: | 10000 MOhm*km |
| Nominal Characteristic Impedance | Nominal Characteristic Tolerance | Regularity of Impedance |
|---|---|---|
| 75 Ohm | 3 Ohm | Min. 40 dB |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 1.7 dB/100m |
| 3.6 MHz | 2.6 dB/100m |
| 10 MHz | 3.9 dB/100m |
| 71.5 MHz | 10 dB/100m |
| 135 MHz | 12.5 dB/100m |
| 270 MHz | 17.7 dB/100m |
| 540 MHz | 25.3 dB/100m |
| 720 MHz | 31.1 dB/100m |
| 750 MHz | 31.5 dB/100m |
| 1000 MHz | 34.4 dB/100m |
| 1500 MHz | 42.7 dB/100m |
| 2000 MHz | 52 dB/100m |
| 2250 MHz | 52.5 dB/100m |
| 3000 MHz | 60.7 dB/100m |
| 4500 MHz | 74.8 dB/100m |
| Table Notes: | Max. attenuation 10% higher |
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] | Velocity of Propagation Tolerance |
|---|---|---|
| 400 ns/ft | 83% | 2% |
| Frequency [MHz] | Min. RL (Return Loss) [dB] |
|---|---|
| 5 - 30 MHz | 23 dB |
| 30 - 1000 MHz | 21 dB |
| 1000 - 3000 MHz | 18 dB |
| 3000 - 4500 MHz | 18 dB |
| Table Notes: | In each frequency band, 3 peak values up to 4 dB lower are allowed |
| Frequency [MHz] | Min. Screening Attenuation After Flexing |
|---|---|
| 30 - 1000 MHz | 75 dB |
| 1000 - 2000 MHz | 65 dB |
| 2000 - 3000 MHz | 55 dB |
| Screening Class: | B |
| Frequency [MHz] | Transfer Impedance |
|---|---|
| 5-30 MHz | Max. 15 mOhm/m |
| Installation Temperature Range: | -5°C To +50°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -40°C To +70°C |
| Max. Pull Tension: | 160 N |
| Min Bend Radius (W/o Pulling Strength): | 140 mm |
| Min Bend Radius (Each Coax): | 40 mm |
| CENELEC Compliance: | EN 50117-1, EN 50117-9-2, EN 50290-2-20 |
| RG Type: | Mini 59 |
| Environmental Space: | Indoor/Outdoor |
| CSA Flammability: | FT4 |
| IEC Flammability: | IEC 60332-3-24 |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| YE03416.00500 | Black | Reel | 500 m | 8719605118639 |
| Update and Revision: | Revision Number: 0.142 Revision Date: 03-30-2023 |
