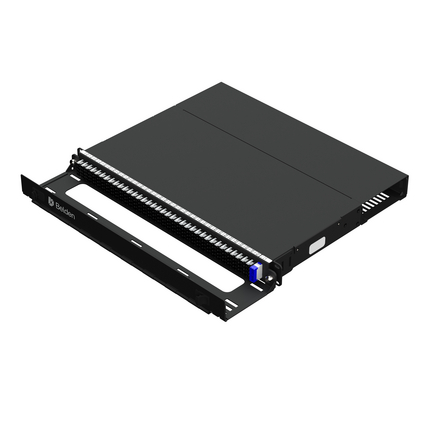

(4)XHD 1U PATCH PANEL 76P 1 TRAY EMPTY BLACK FINISH (BLACK LC ADAPTERS)
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 7.6 lbs |
| Height: | 1.75 in |
| Width: | 19 in |
| Length: | 19.15 in |
| Max Capacity: | 144 Terminations (LC), 8 Terminations (SN) |
| Termination Type: | Front Sliding Drawer |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material |
|---|---|
| Patch Cord Tray Assy | Steel/Aluminum |
| Patch Panel | Aluminum |
| Cable Tray Assy | Steel/Aluminum |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Screws (12-24), Screws (10-32), Velcro Cable Tie, Self-Locking cable tie, Quick Installation Guides |
| Packaging: | Individually packaged in a cardboard box. |
| Notes: | For more information, please refer to our web site at http://www.belden.com. |
| Update and Revision: | Revision Number: 0.17 Revision Date: 04-25-2025 |
