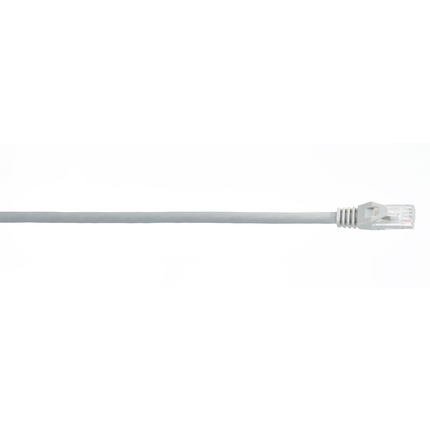

(109)WireNet CAT6 Unshielded LSZH Patch cord, 26AWG, Stranded
| Suitable Applications: | Telecommunications Room, Main Distribution Room, Data Centers |
| Wiring Scheme: | T568A/B-T568A/B |
| Packaging: | Individually packaged in a sealed plastic bag. |
| Dielectric Strength: | 1,000 V RMS @ 60 Hz for 1 minute |
| Operating Temperature Range: | -20°C to +60°C |
| Data Category: | Category 6 |
| TIA/EIA Compliance: | ISO/IEC 11801-1:2017; TIA 568-C.3 |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | WireNet Jacks (CU-J....) , WireNet Panel (NN-UNIV-E) or KeyConnect empty panels (AX....) |
| Item # | Color | Length |
|---|---|---|
| CU-LPU6BK001M | Black | 1 m |
| CU-LPU6BK002M | Black | 2 m |
| CU-LPU6BK003M | Black | 3 m |
| CU-LPU6BK004M | Black | 4 m |
| CU-LPU6BK005M | Black | 5 m |
| CU-LPU6BK007M | Black | 7 m |
| CU-LPU6BL001M | Blue | 1 m |
| CU-LPU6BL002M | Blue | 2 m |
| CU-LPU6BL003M | Blue | 3 m |
| CU-LPU6BL004M | Blue | 4 m |
| CU-LPU6BL005M | Blue | 5 m |
| CU-LPU6BL007M | Blue | 7 m |
| CU-LPU6GY001M | Grey | 1 m |
| CU-LPU6GY002M | Grey | 2 m |
| CU-LPU6GY003M | Grey | 3 m |
| CU-LPU6GY004M | Grey | 4 m |
| CU-LPU6GY005M | Grey | 5 m |
| CU-LPU6GY007M | Grey | 7 m |
| CU-LPU6RD001M | Red | 1 m |
| CU-LPU6RD002M | Red | 2 m |
| CU-LPU6RD003M | Red | 3 m |
| CU-LPU6RD004M | Red | 4 m |
| CU-LPU6RD005M | Red | 5 m |
| CU-LPU6RD007M | Red | 7 m |
| CU-LPU6EW001M | White | 1 m |
| CU-LPU6EW002M | White | 2 m |
| CU-LPU6EW003M | White | 3 m |
| CU-LPU6EW004M | White | 4 m |
| CU-LPU6EW005M | White | 5 m |
| CU-LPU6EW007M | White | 7 m |
| CU-LPU6YL001M | Yellow | 1 m |
| CU-LPU6YL002M | Yellow | 2 m |
| CU-LPU6YL003M | Yellow | 3 m |
| CU-LPU6YL004M | Yellow | 4 m |
| CU-LPU6YL005M | Yellow | 5 m |
| CU-LPU6YL007M | Yellow | 7 m |
| Update and Revision: | Revision Number: 0.38 Revision Date: 04-13-2023 |
