(4)Form A, Dual Valve Adaptor| M12- Male Straight | #Contacts: 3, A-coded | 2 x Form A - Female Angled Cordset | #Contacts: 2+2 PE | Suppression diode (TVS) & yellow LED | 24 V / 4 A | Cable: Black PUR Jacket; 3x0.50 mm² (20 AWG); IEC

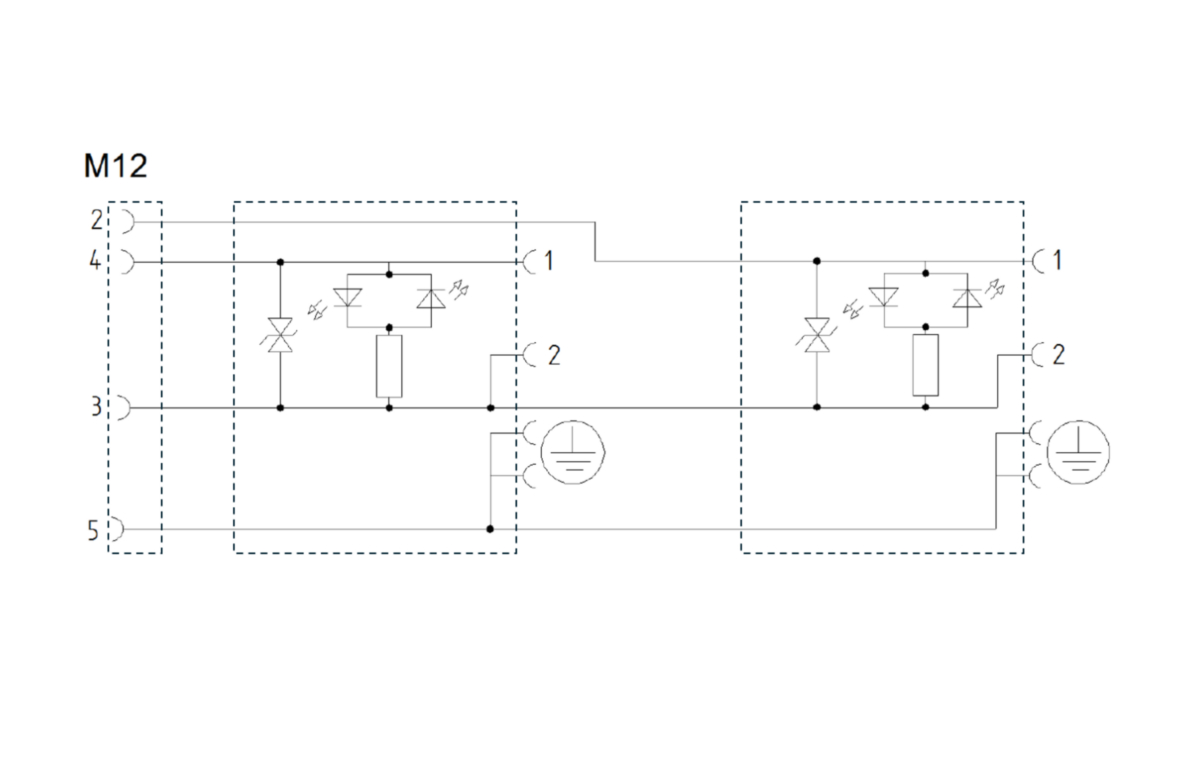

| Pin 2 | Pin 3 | Pin 4 | Pin 5 |
|---|---|---|---|
| brown | blue | brown | green-yellow |
| Pin 1 | Pin 2 |
|---|---|
| brown | blue |
| Product Family: | Valve Connectors |
| Brand: | Lumberg Automation |
| Shielding: | Unshielded |
| Rated Voltage: | 24 V |
| Rated Impulse Voltage: | 4.0 kV (PCBA 2.0 kV) |
| Operating Voltage: | 24 V AC/DC |
| Rated Current*: | 4 A |
| Product Sub Family: | Dual Valve |
| Type of Contact / Gender: | Pin Contact / Male, M12 Exit |
| Connector Design: | M12| Male | 0° | 4 Pole |
| Attachment Type: | Fixed Screw, M12 Exit |
| Number of Pins: | 3, M12 Exit |
| Coding: | A |
| Contact Resistance: | ≤ 5 mOhm, M12 Exit Ohm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Conductor Cross Section: | 0.50 mm² |
| Ambient Temperature (Operation)*: | - 40 °C - + 80 °C |
| Temperature Range (Gasket): | -25°C to +80°C |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Design Standard: | DIN EN 175301-803-A |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Copper Alloy (CuSn) |
| Contact Plating: | Gold over Copper (Cu/Au), M12 Exit |
| Contact Bearer Material: | Thermoplastic Polyurethane (TPU), M12 Exit |
| Contact Bearer Color: | Black, M12 Exit |
| Flammability Class (Contact Bearer): | UL 94 HB, M12 Exit |
| Housing Material: | Brass (CuZn), M12 Exit |
| Housing Plating: | Nickel (Ni), M12 Exit |
| Housing Color: | Metallic |
| Attachment Material: | Screw |
| Gasket Material: | Molded Integrated Gasket |
| Protection Circuitry: | Suppression diode (TVS) |
| Protective Circuit: | Suppression diode (TVS) |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Cable Number: | 226 |
| Conductor Size: | 0.5 mm² |
| Number of Wires: | 3 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 5 M |
| Cycles (Torsion): | ˃ 5 M @ ± 360 °/1 m |
| Conductor material: | Cu |
| Cable Jacket Material: | Polyurethane (PUR) |
| Cable Jacket Color: | Black |
| Cable Diameter D: | Ø 4.6 mm [ 0.181 ]" |
| Wire Insulation Material: | Polypropylene (PP) |
| Insulated Wire Diameter: | Ø 1.50 mm [ 0.06" ] |
| Ambient Temperature (Fixed Installation): | - 50 °C to + 105 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation): | - 25 °C to + 105 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst): | - 25 °C to + 60 °C |
| UL Cable Type: | AWM: 20549 |
| Flammability Class (Cable Jacket): | DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2 |
| Cable Characteristics: | Flexibility: Excellent | Abrasion Resistance: Excellent | Oil & Chemical Resistance: Excellent | UV Resistance: Good to excellent | Low Temp Performance: Excellent (flexible to -40°C) | Flame Retardance: Varies | Halogen-Free: Yes | Mechanical Durability: High (resists impact, tear, and flex) | Environmental Suitability: Outdoor, oily, wet, or rough environments |
| Product Sub Family, Side 2: | Dual Valve |
| Type of Contact / Gender, Side 2: | Socket Contact / Female |
| Connector Design, Side 2: | Dual Form A | Female | 90° | 2+2PE Pole |
| Attachment Type, Side 2: | Central Screw |
| Number of Pins, Side 2: | 2+2 PE |
| Coding, Side 2: | A |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Mating Cycles, Side 2: | ≤ 50 |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 80 °C |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67 |
| Design Standard, Side 2: | DIN EN 175301-803-A, ISO 4400 |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance, Side 2: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category, Side 2: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2: | Brass (CuZn) |
| Contact Plating, Side 2: | Copper over Tin (Cu/Sn) |
| Contact Bearer Material, Side 2: | Glass-filled Polyamides (PA GF) |
| Contact Bearer Color, Side 2: | Black |
| Flammability Class (Contact Bearer), Side 2: | UL 94 V-0 |
| Molded Body Material, Side 2: | Thermoplastic Polyurethane (TPU) |
| Molded Body Color, Side 2: | Grey Translucent |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Housing Color, Side 2: | Translucent |
| Attachment Material, Side 2: | Steel, Philips combi slot |
| Function Indicator, Side 2: | Yellow LED |
| Protective Circuit, Side 2: | Suppression diode (TVS) |
| Fastening Torque (Attachment), Side 2: | (50-60) Ncm |
| Note, Side 2: | 1. Do not connect or disconnect under load. |
| VDE: | Yes |
| RoHS Compliant: | Yes |
| Halogenfree: | Yes |
| Oil Resistance: | Good chemical and oil resistance |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note Derating: | Notice derating |
| Update and Revision: | Revision Number: 0.6 Revision Date: 07-30-2025 |
| Item # | Item Description | Cable Length |
|---|---|---|
| 55338 | VAD M12 1B-VAD 1B-1-3-226/0,4 M | 0.4 m |
| 16452 | VAD M12 1B-VAD 1B-1-3-226/0,15 M |
