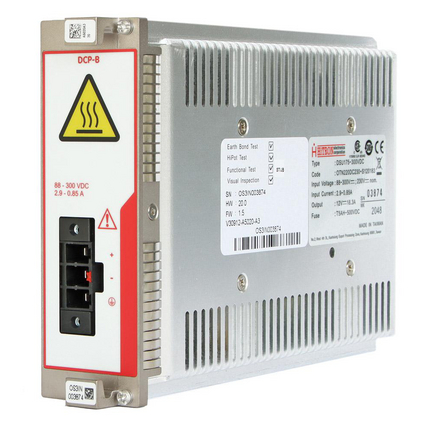

(4)XTran DC Power Supply with 88-300 VDC input for XT-1104-A, XT-2206-A, XT-2209-A, XT-2210-A
| Part Number: | V30912-A5020-A3 |
| Power Supply Protection: | Auto restart: Over temperature / Overcurrent |
| Power Supply Efficiency: | At 230VDC and Pout is 220W: |
| Output Power: | 220W |
| Input voltage: | 88-300VDC (nominal 230VDC) |
| Inrush Current Max: | Cold start 230VDC: 30A |
| MTBF (MIL-HDBK 217F: Gb 25 ºC): |
| Operating Temperature Range: | -30° to +65°C (-22° to 149°F) |
| Storage Temperature Range: | -30° to +75°C (-22° to 167°F) |
| Relative humidity (non-condensing): | 0-95 % |
| Overall Width: | 40.32 mm |
| Overall Height: | 126 mm |
| Depth: | 193 mm |
| Weight: | 0.9 kg |
| Power Supply Connector: | PC 4/ 3-G-7,62 BK and BF-PC 4 BK on front panel, PC 4 HV/ 3-STF-7,62 for cable |
| Node Compatibility: | XT-1104-A, XT-2206-A, XT-2209-A, XT-2210-A |
| Basis Standard: | CE, EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A2 :2021, EN 55035:2017 + A11:2020, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019 |
| Safety of industrial control equipment: | EN 62368-1:2014 |
| Power Utility: | EN 61000-6-5:2015, EN 61850-3:2014 (§6.7), IEEE 1613-2009 (§4), IEEE1613-2013 (clause 5,7,8,9,10) |
| Transportation: | EN 50121-4:2016 + A1:2019 |
| Guarantee: | Standard 1 year (extension possible) |
| Accessories to Order Separately: | PSU cable (3m) for DCP-B power supply: S30927-C3-A30 |
| Product Documentation: | Available via Belden Solutions Portal site |
| Certificates: | Available via Belden Solutions Portal site |
| Update and Revision: | Revision Number: 0.21 Revision Date: 11-14-2025 |
