TT-SBB-012-LIN - Transit, In+Outdoor, BO, OS2, 12f, Subunit 2.0mm, AIA, Dbl Jkt - LSZH, OFCR-ST1

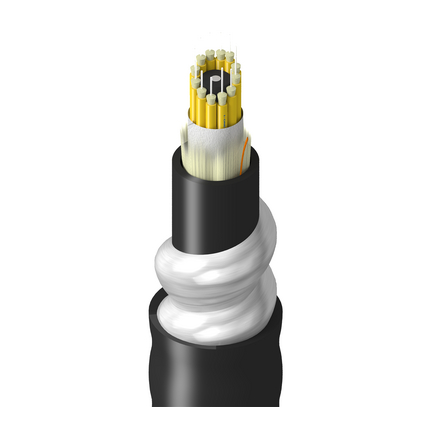

Transit Grade, Indoor/Outdoor, Breakout, OS2, 12 Fibers, Subunits 2.0mm 900um, Aluminum Interlock Armor, Double Jacket - LSZH, OFCR-ST1

Product Overview

Product Category: Fiber Breakout Cable
Suitable Applications: Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof

Fiber Specifications

Fiber Type: OS2
Fiber Core Diameter: 8.2/125 µm
Fiber Diameter: 250 µm
Buffer Material: LSZH - Low Smoke Zero Halogen
Buffer Diameter: 900 µm
Fiber Count: 12
Fiber Color Coding: TIA-598-D

Cable Construction

Number of Active Subunits: 12
Fibers Per Subunit: 1
Subunit Diameter: 0.078 in (2.0 mm)
Subunit Color: Yellow
Subunit Strength Members: Waterblocking Aramid Yarns
Central Strength Member: Upjacketed GRP
Core Wrap: Waterblocking Tape

Inner Jacket Specifications

Strength Member: Waterblocking Aramid Yarns
Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nominal Diameter: 0.540 in (13.7 mm)
Color: Black
Number of Ripcords: 1

Armor Specifications

Armor Type and Material: AIA - Aluminum Interlock Armor

Outer Jacket Specifications

Strength Member: Waterblocking Aramid Yarns
Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nominal Diameter: 0.950 in (24.1 mm)
Optical Characteristics
Wavelength1310 nm1550 nm
Max. Attenuation0.50 dB/km0.50 dB/km
Mode Field Diameter9.2 µm10.4 µm
1 Gigabit Ethernet Performance5,000 m-
10 Gigabit Ethernet Performance10,000 m40,000 m

Mechanical Characteristics

Min. Bend Radius During Installation: 20x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 1335 N (300 lbf)
Max Tensile Strength During Operation: 400 N (90 lbf)
Crush Resistance: 440 N/cm
Bulk Cable Weight: 61 lbs/kft (91 kg/km)

Temperature Range

Installation Temp Range: -10°C to +60°C
Operating Temp Range: -40°C to +70°C
Storage Temp Range: -40°C to +70°C

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Sunlight Resistance, Burial
Sustainability: CA Prop 65
Flammability / Reaction to Fire: OFCR-ST1, FT4
ICEA Compliance: S-104-696
Other Standard Compliance(s): NFPA 130, NFPA 502

History

Update and Revision: Revision Number: 0.23 Revision Date: 10-14-2021
No accessories are available for this product
