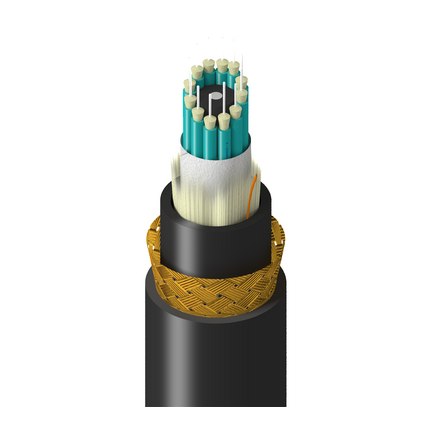

TM-3BB-012-LBA - Marine, In+Outdoor, BO, OM3, 12f, Subunit 2.0mm, BBA, Dbl Jkt - LSZH, OFCR-ST1, ABS


Marine Grade, Indoor/Outdoor, Breakout, OM3, 12 Fibers, Subunits 2.0mm 900um, Bronze Braid Armor, Double Jacket - LSZH, OFCR-ST1, ABS Approved

Product Overview

Product Category: Fiber Breakout Cable
Suitable Applications: Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof

Fiber Specifications

Fiber Type: OM3
Fiber Core Diameter: 50/125 µm
Fiber Diameter: 250 µm
Buffer Material: LSZH - Low Smoke Zero Halogen
Buffer Diameter: 900 µm
Fiber Count: 12
Fiber Color Coding: TIA-598-D

Cable Construction

Number of Active Subunits: 12
Number of Fillers: 0
Fibers Per Subunit: 1
Subunit Waterblocking: Waterblocking Aramid
Subunit Diameter: 0.078 in (2.0 mm)
Subunit Color: Aqua
Subunit Strength Members: Waterblocking aramid yarns
Central Strength Member: Upjacketed GRP
Core Wrap: Waterblocking tape

Inner Jacket Specifications

Strength Member: Waterblocking aramid yarns
Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nominal Diameter: 0.550 in (14.0 mm)
Color: Black
Number of Ripcords: 1

Armor Specifications

Armor Type and Material: BBA - Bronze Braid Armor

Outer Jacket Specifications

Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nominal Diameter: 0.735 in (18.7 mm)
Optical Characteristics
Wavelength850 nm1300 nm
Max. Attenuation3 dB/km1.0 dB/km
1 Gigabit Ethernet Performance1000 m550 m
10 Gigabit Ethernet Performance300 m-
Min. Effective Modal Bandwidth (EMB)2000 MHz.km-
Min. Overfilled Launch (OFL) Bandwidth1500 MHz.km500 MHz.km

Mechanical Characteristics

Min. Bend Radius During Installation: 20x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 2670 N (600 lbf)
Max Tensile Strength During Operation: 800 N (180 lbf)
Crush Resistance: 440 N/cm
Bulk Cable Weight: 307 lbf/kft (457 kg/km)

Temperature Range

Installation Temp Range: -10°C to +60°C
Operating Temp Range: -40°C to +70°C
Storage Temp Range: -40°C to +70°C

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire: OFCR-ST1, FT4
ICEA Compliance: S-104-696
IEEE Compliance: IEEE 45, IEEE 1580 (braid only)
Marine Compliance: ABS

History

Update and Revision: Revision Number: 0.13 Revision Date: 10-14-2021
