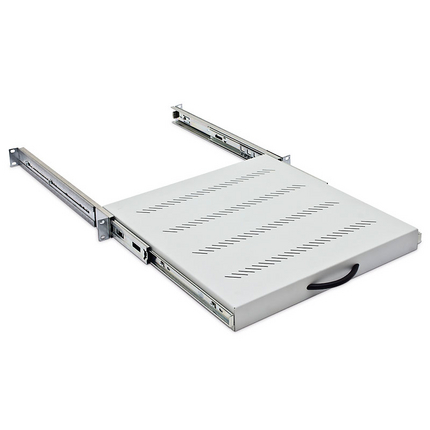

(4)Sliding Shelf 19" for E-Series. Shelf with high quality ball bearings with a maximum loading capacity of 30 kg.
| Suitable Applications: | The universal sliding shelf is ideal to create additional space for a monitor or other required peripheral equipment within the cabinet. |
| Environmental Space: | Indoor |
| Height: | 45 mm |
| Depth: | 450 mm |
| Finish: | Powder Coated |
| Material: | Steel |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | The package comes with 8 sets of cage nuts (M6x10 screw, plastic washers and cage nuts) |
| Packaging: | Individually packed. |
| Item # | Color | Depth | Application |
|---|---|---|---|
| EDAP5431 | Gray | 350 mm | E-Series Cabinets |
| EDAP5432 | Black | 350 mm | E-Series Cabinets |
| EDAP5441 | Gray | 450 mm | E-Series Cabinets |
| EDAP5442 | Black | 450 mm | E-Series Cabinets |
| EDAP5451 | Gray | 550 mm | E-Series Cabinets |
| EDAP5452 | Black | 550 mm | E-Series Cabinets |
| EDAP5461 | Gray | 650 mm | E-Series Cabinets |
| EDAP5462 | Black | 650 mm | E-Series Cabinets |
| Update and Revision: | Revision Number: 0.58 Revision Date: 04-08-2022 |
